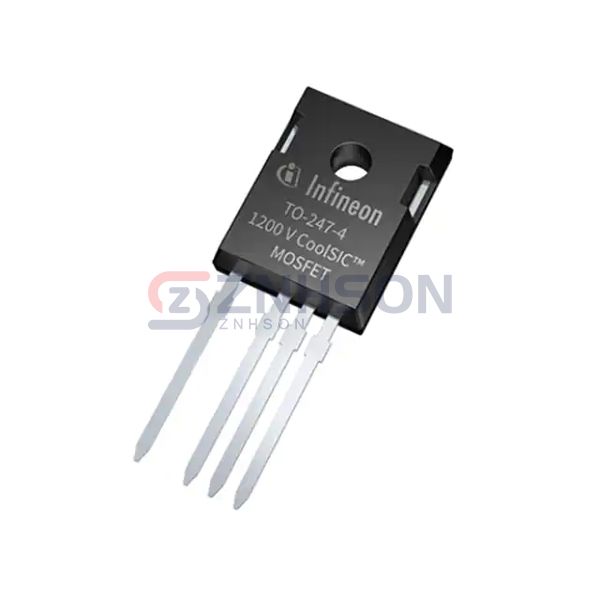

IMZ120R220M1HXKSA1
Infineon Technologies
Infineon Technologies
SICFET N-CH 1.2KV 13A TO247-4
$12.39
Available to order
Reference Price (USD)
1+
$12.39000
500+
$12.2661
1000+
$12.1422
1500+
$12.0183
2000+
$11.8944
2500+
$11.7705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IMZ120R220M1HXKSA1 by Infineon Technologies is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the IMZ120R220M1HXKSA1 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 13A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 15V, 18V
- Rds On (Max) @ Id, Vgs: 220mOhm @ 4A, 18V
- Vgs(th) (Max) @ Id: 5.7V @ 1.6mA
- Gate Charge (Qg) (Max) @ Vgs: 8.5 nC @ 18 V
- Vgs (Max): +23V, -7V
- Input Capacitance (Ciss) (Max) @ Vds: 289 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 75W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: PG-TO247-4-1
- Package / Case: TO-247-4
