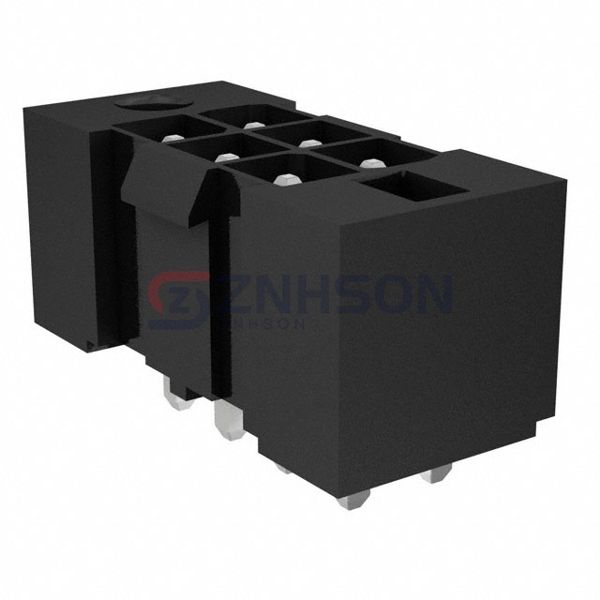

IPBT-103-H1-T-D-GP
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 6POS 4.2MM
$2.89
Available to order
Reference Price (USD)
1+
$1.79000
10+
$1.62200
100+
$1.39020
500+
$1.15850
1,000+
$0.99300
5,000+
$0.88046
10,000+
$0.86060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPBT-103-H1-T-D-GP male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.380" (9.65mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Mating Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
