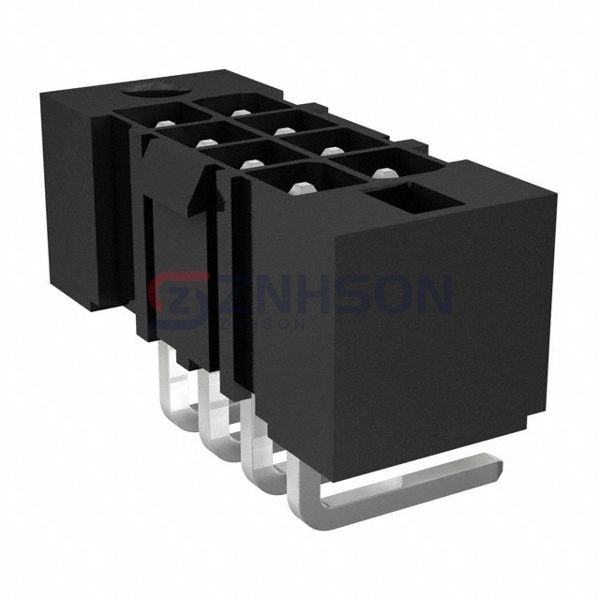

IPBT-104-H1-T-D-RA-GP
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 8POS 4.2MM
$4.80
Available to order
Reference Price (USD)
1+
$2.75000
19+
$2.64000
38+
$2.42000
57+
$2.31000
114+
$2.20000
266+
$1.92500
513+
$1.87000
1,007+
$1.59500
2,508+
$1.48500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPBT-104-H1-T-D-RA-GP male pin header by Samtec Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Samtec Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.147" (3.73mm)
- Overall Contact Length: -
- Insulation Height: 0.424" (10.77mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Mating Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
Related Products
Amphenol ICC (FCI)
77313-102-66LF
Preci-Dip
890-70-014-10-003101
Sullins Connector Solutions
SWR25X-NRTC-S07-RB-BA
3M
929838-01-17
TE Connectivity AMP Connectors
1-353081-2
Samtec Inc.
TSM-108-01-L-SH-005-P-TR
Samtec Inc.

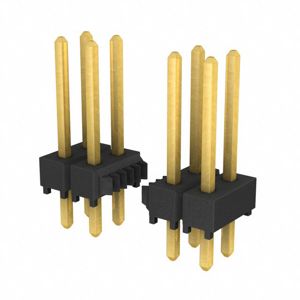

TSW-141-14-G-D
Preci-Dip
890-80-025-10-003101
Molex

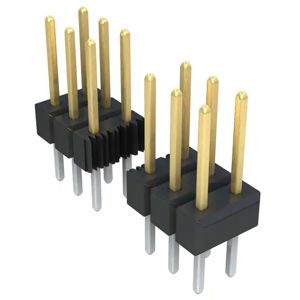

0010897263
