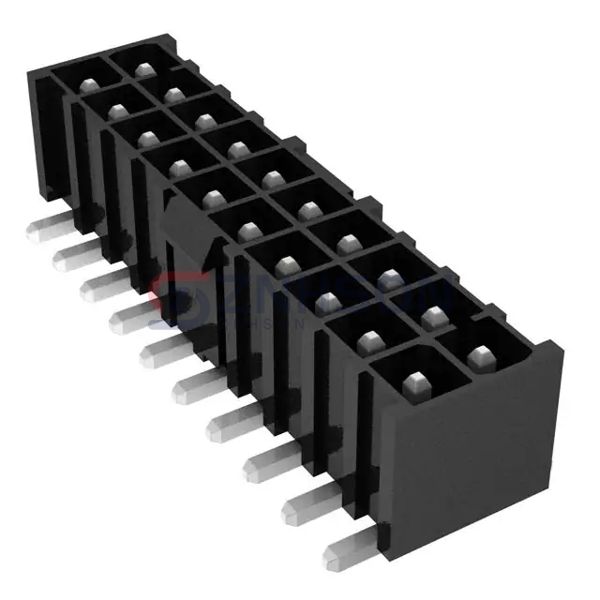

IPBT-110-H2-T-D-K
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 20POS 4.2MM
$5.91
Available to order
Reference Price (USD)
1+
$3.38000
10+
$3.24000
100+
$2.70000
500+
$2.29500
1,000+
$1.95750
5,000+
$1.75500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IPBT-110-H2-T-D-K male pin header by Samtec Inc. offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Samtec Inc. for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.380" (9.65mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 400VAC, 565VDC
Related Products
Samtec Inc.
FTSH-133-02-F-D
Samtec Inc.
FTSH-125-01-F-DV-K-A
Preci-Dip
800-V3-010-32-002191
Molex
207843-0006
TE Connectivity AMP Connectors
87221-6
Preci-Dip

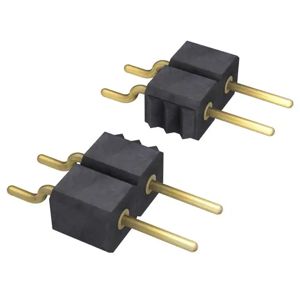

800-10-051-40-001101
Molex

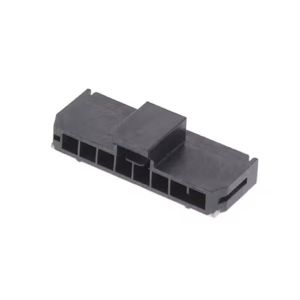

1054301108
Amphenol ICC (FCI)

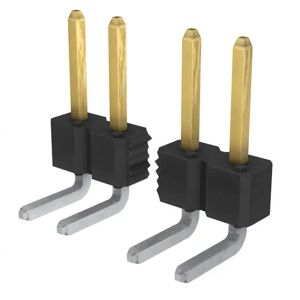

77315-801-14LF
