IPL1-110-02-L-SH-K
Samtec Inc.
Samtec Inc.
CONN HEADER SMD R/A 10POS 2.54MM
$7.84
Available to order
Reference Price (USD)
1+
$4.68000
19+
$4.48789
114+
$3.74000
513+
$3.17901
1,007+
$2.71150
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the IPL1-110-02-L-SH-K rectangular connector header by Samtec Inc.. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the IPL1-110-02-L-SH-K ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Samtec Inc. for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.215" (5.46mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: 675VAC, 954VDC
Related Products
Samtec Inc.
TSM-108-01-L-DH-K-TR
Samtec Inc.
BBD-121-T-B
Preci-Dip
800-80-043-66-001101
TE Connectivity AMP Connectors
1-1971838-5
Samtec Inc.
TSM-110-04-TM-SV-P
Mill-Max Manufacturing Corp.
850-90-027-20-001000
Samtec Inc.
TSW-104-25-L-D-RA
Samtec Inc.

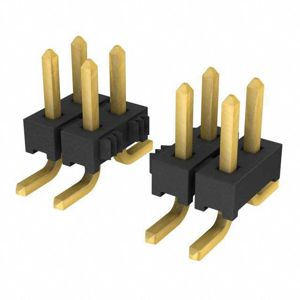

TMM-115-01-G-D-SM
Samtec Inc.

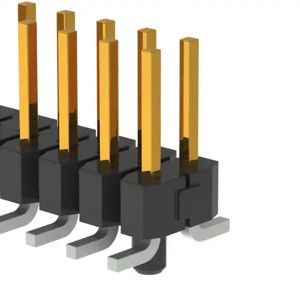

TSM-118-01-S-DV-A-P
