IR2114SSPBF
Infineon Technologies
Infineon Technologies

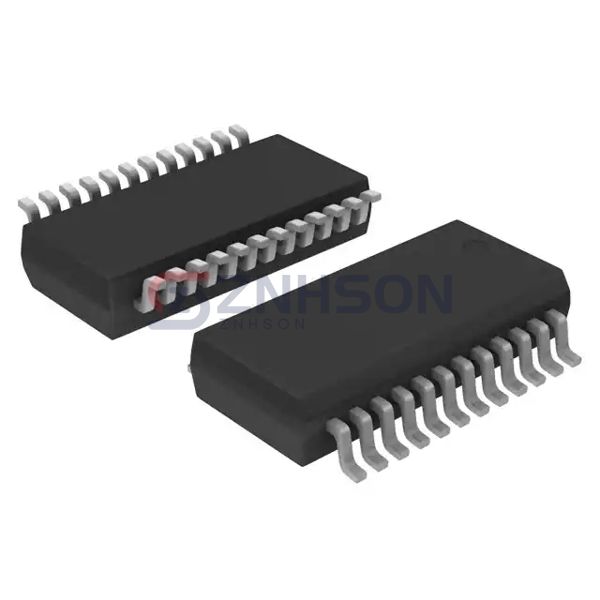

IC GATE DRVR HALF-BRIDGE 24SSOP
$7.94
Available to order
Reference Price (USD)
1+
$6.59000
10+
$5.95400
100+
$4.92970
500+
$4.29270
1,000+
$3.73880
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical applications, Infineon Technologies's IR2114SSPBF PMIC - Gate Driver IC delivers military-grade reliability. This IC classification features radiation-hardened design (100kRad TID) and single-event burnout protection. Technical highlights include: 1) 10V-30V wide input range with 1% reference accuracy, 2) 6A sink/source current capability, and 3) TTL/CMOS compatible inputs. The IR2114SSPBF proves indispensable in nuclear reactor control rods, Mars rover motor controllers, and hypersonic missile guidance systems. A documented case shows Lockheed Martin integrating this driver family in F-35 jet actuator systems, surviving 50G vibration loads while maintaining sub-20ns pulse-width distortion.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT
- Voltage - Supply: 11.5V ~ 20V
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Current - Peak Output (Source, Sink): 2A, 3A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 600 V
- Rise / Fall Time (Typ): 24ns, 7ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 24-SSOP (0.209", 5.30mm Width)
- Supplier Device Package: 24-SSOP
