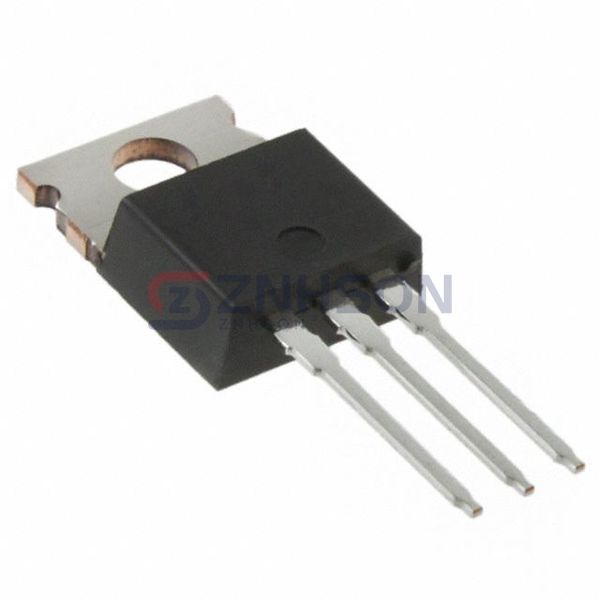

IRF9530PBF
Vishay Siliconix
Vishay Siliconix
MOSFET P-CH 100V 12A TO220AB
$1.89
Available to order
Reference Price (USD)
1+
$1.79000
50+
$1.43400
100+
$1.25480
500+
$0.97310
1,000+
$0.76824
2,500+
$0.71702
5,000+
$0.68117
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IRF9530PBF from Vishay Siliconix, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the IRF9530PBF ensures reliable performance in demanding environments. Upgrade your circuit designs with Vishay Siliconix's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 300mOhm @ 7.2A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 38 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 860 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 88W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
Related Products
NXP USA Inc.
BUK6E2R0-30C127
Infineon Technologies
BSZ036NE2LSATMA1
STMicroelectronics
STL10N65M2
Infineon Technologies
IPP120N08S403AKSA1
Vishay Siliconix
SI7454FDP-T1-RE3
onsemi
NTGS4141NT1G
Vishay Siliconix
SI3443CDV-T1-BE3
NXP USA Inc.
BUK7575-100A,127
Texas Instruments

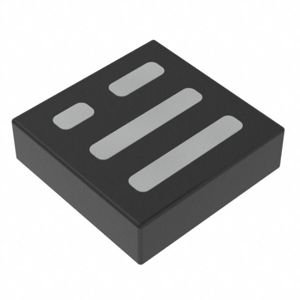

CSD22205LT

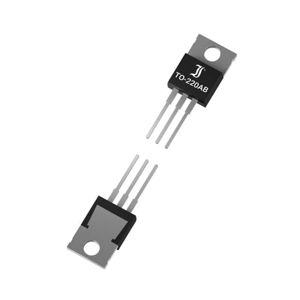

Diotec Semiconductor
