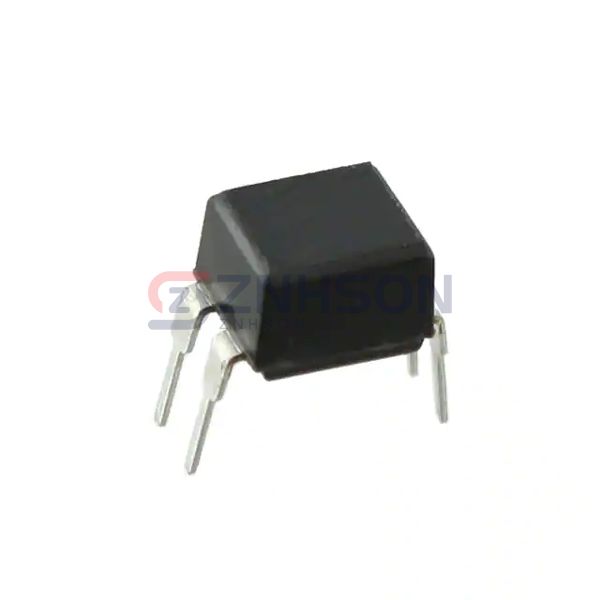

IRFD9220PBF
Vishay Siliconix
Vishay Siliconix
MOSFET P-CH 200V 560MA 4DIP
$2.89
Available to order
Reference Price (USD)
1+
$1.49000
10+
$1.31900
100+
$1.04220
500+
$0.80820
1,000+
$0.63806
2,500+
$0.59552
5,000+
$0.56574
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRFD9220PBF single MOSFET from Vishay Siliconix is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the IRFD9220PBF is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 200 V
- Current - Continuous Drain (Id) @ 25°C: 560mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.5Ohm @ 340mA, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 15 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 340 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: 4-HVMDIP
- Package / Case: 4-DIP (0.300", 7.62mm)
