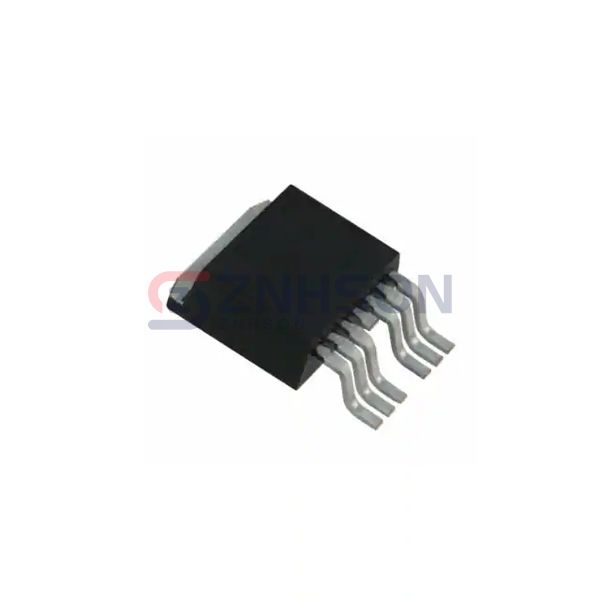

IRL40SC209
Infineon Technologies
Infineon Technologies
MOSFET N-CH 40V 478A D2PAK
$4.83
Available to order
Reference Price (USD)
800+
$3.09375
1,600+
$2.88750
2,400+
$2.74313
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IRL40SC209 single MOSFET from Infineon Technologies is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the IRL40SC209 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 478A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 0.8mOhm @ 100A, 10V
- Vgs(th) (Max) @ Id: 2.4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 267 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 15270 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 375W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK (7-Lead)
- Package / Case: TO-263-7, D²Pak (6 Leads + Tab), TO-263CB
