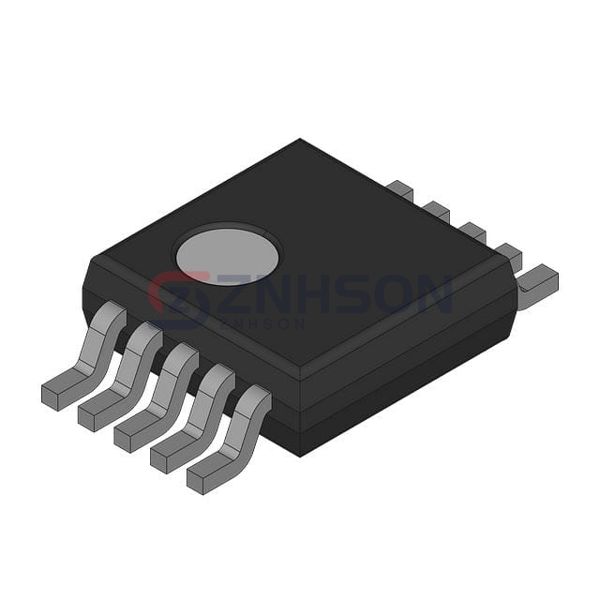

ISL43L410IU
Intersil
Intersil
SINGLE-ENDED MUX, 2 FUNC, 2 CH
$1.20
Available to order
Reference Price (USD)
1+
$1.20000
500+
$1.188
1000+
$1.176
1500+
$1.164
2000+
$1.152
2500+
$1.14
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ISL43L410IU from Intersil's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The ISL43L410IU is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Obsolete
- Switch Circuit: DPDT
- Multiplexer/Demultiplexer Circuit: 2:2
- Number of Circuits: 1
- On-State Resistance (Max): 400mOhm
- Channel-to-Channel Matching (ΔRon): 30mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 20ns, 12ns
- -3db Bandwidth: -
- Charge Injection: 95pC
- Channel Capacitance (CS(off), CD(off)): 115pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -95dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-MSOP
Related Products
Nexperia USA Inc.
74HC4051BQ-Q100,11
Renesas Electronics America Inc
ISL84522IVZ
Vishay Siliconix
DG407DW-E3
Renesas Electronics America Inc
HI3-0507A-5Z
Vishay Siliconix
DG509BEQ-T1-E3
Texas Instruments
SN74LV4052AD
Nexperia USA Inc.

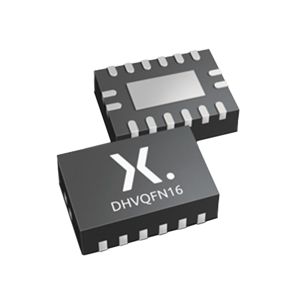

74HC4851BQ,115
