ISL6700IR-T
Intersil
Intersil
HALF BRIDGE BASED MOSFET DRIVER
$0.68
Available to order
Reference Price (USD)
1+
$0.68000
500+
$0.6732
1000+
$0.6664
1500+
$0.6596
2000+
$0.6528
2500+
$0.646
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Intersil's ISL6700IR-T, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The ISL6700IR-T demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Obsolete
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 9V ~ 15V
- Logic Voltage - VIL, VIH: 0.8V, 2.2V
- Current - Peak Output (Source, Sink): 1.4A, 1.3A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 80 V
- Rise / Fall Time (Typ): 5ns, 5ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount

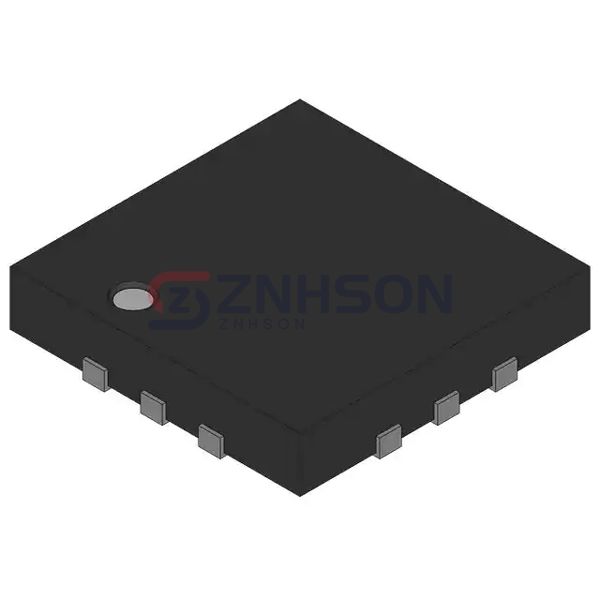

- Package / Case: 12-VQFN Exposed Pad
- Supplier Device Package: 12-QFN (4x4)
