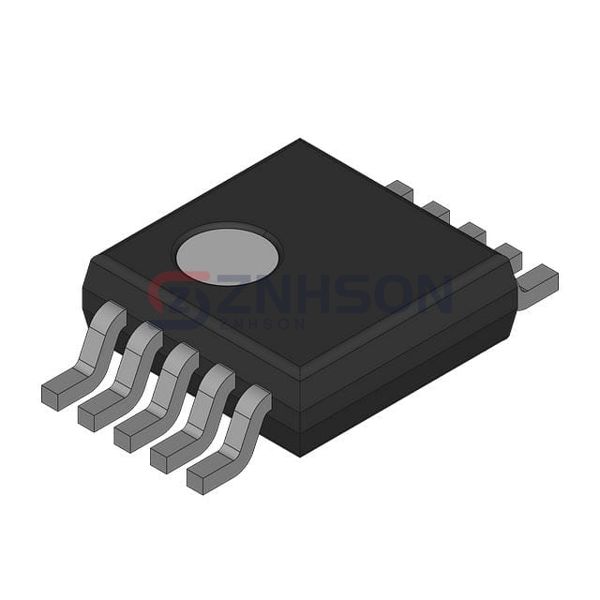

ISL84762IUZ
Intersil
Intersil
SPDT ANALOG SWITCH, 2 FUNC, 1 CH
$2.01
Available to order
Reference Price (USD)
1,960+
$1.30500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ISL84762IUZ by Intersil represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The ISL84762IUZ is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 600mOhm
- Channel-to-Channel Matching (ΔRon): 50mOhm
- Voltage - Supply, Single (V+): 1.65V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 20ns, 12ns
- -3db Bandwidth: -
- Charge Injection: 95pC
- Channel Capacitance (CS(off), CD(off)): 115pF
- Current - Leakage (IS(off)) (Max): 2nA
- Crosstalk: -95dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-MSOP
