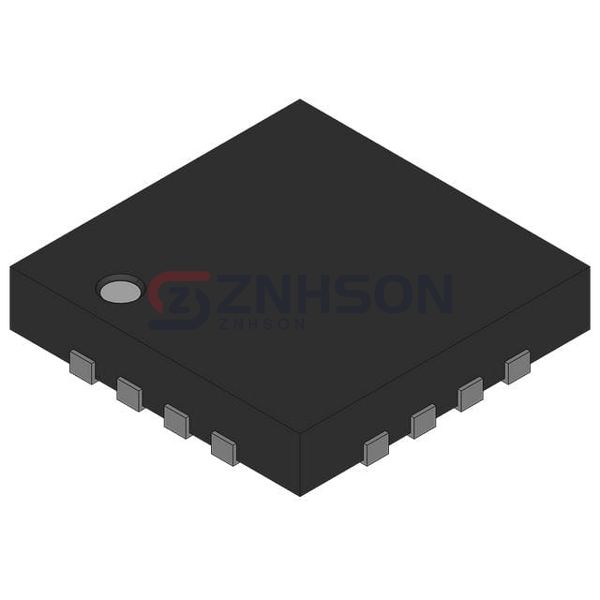

ISL84782IRZ
Intersil
Intersil
ULTRA LOW ON-RESISTANCE, LOW-VOL
$1.65
Available to order
Reference Price (USD)
1+
$1.65000
500+
$1.6335
1000+
$1.617
1500+
$1.6005
2000+
$1.584
2500+
$1.5675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Intersil's ISL84782IRZ redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The ISL84782IRZ is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SP4T
- Multiplexer/Demultiplexer Circuit: 4:1
- Number of Circuits: 2
- On-State Resistance (Max): 750mOhm
- Channel-to-Channel Matching (ΔRon): 120mOhm
- Voltage - Supply, Single (V+): 1.6V ~ 3.6V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 25ns, 23ns
- -3db Bandwidth: -
- Charge Injection: -65pC
- Channel Capacitance (CS(off), CD(off)): 62pF, 218pF
- Current - Leakage (IS(off)) (Max): 4nA
- Crosstalk: -100dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-WFQFN Exposed Pad
- Supplier Device Package: 16-TQFN (3x3)
