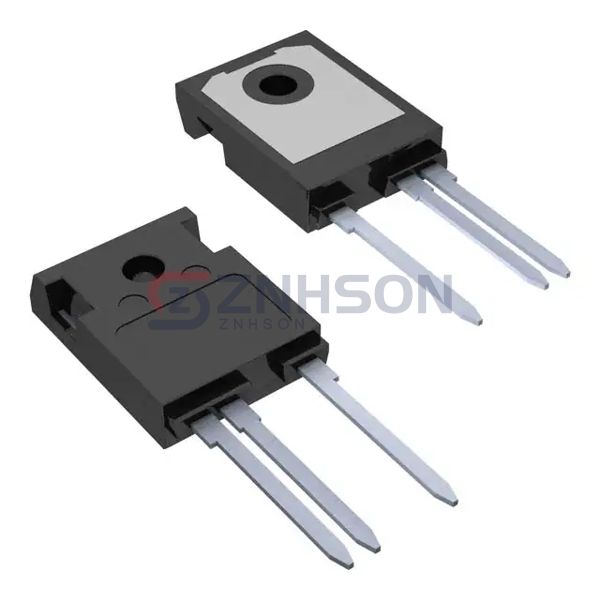

IXBH20N360HV
IXYS
IXYS
IGBT 3600V 70A TO-247HV
$123.20
Available to order
Reference Price (USD)
1+
$35.49000
10+
$32.82800
30+
$30.16667
120+
$28.03708
270+
$25.73026
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXBH20N360HV by IXYS is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With IXYS's reputation for quality, the IXBH20N360HV is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 3600 V
- Current - Collector (Ic) (Max): 70 A
- Current - Collector Pulsed (Icm): 220 A
- Vce(on) (Max) @ Vge, Ic: 3.4V @ 15V, 20A
- Power - Max: 430 W
- Switching Energy: 15.5mJ (on), 4.3mJ (off)
- Input Type: Standard
- Gate Charge: 110 nC
- Td (on/off) @ 25°C: 18ns/238ns
- Test Condition: 1500V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): 1.7 µs
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: TO-247HV
