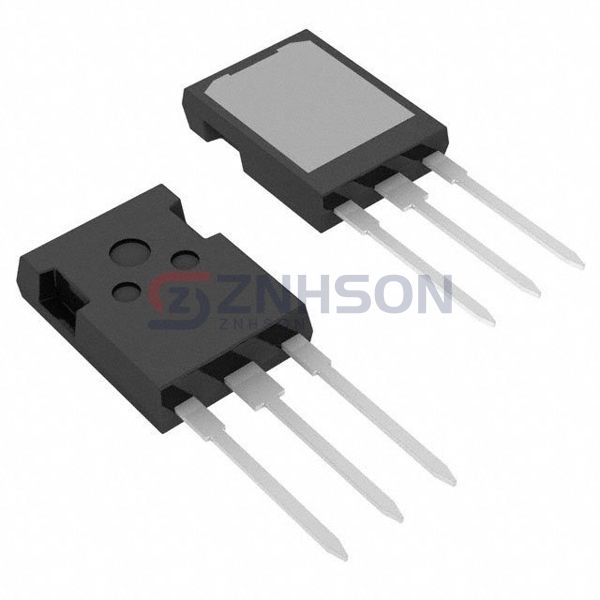

IXGX120N60A3
IXYS
IXYS
IGBT 600V 200A 780W PLUS247
$19.26
Available to order
Reference Price (USD)
1+
$15.02000
10+
$13.65000
30+
$12.62633
120+
$11.60250
270+
$10.57874
510+
$9.89625
1,020+
$9.10000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IXGX120N60A3 Single IGBT transistor by IXYS, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the IXGX120N60A3 ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the IXGX120N60A3 for unmatched power control.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 200 A
- Current - Collector Pulsed (Icm): 600 A
- Vce(on) (Max) @ Vge, Ic: 1.35V @ 15V, 100A
- Power - Max: 780 W
- Switching Energy: 2.7mJ (on), 6.6mJ (off)
- Input Type: Standard
- Gate Charge: 450 nC
- Td (on/off) @ 25°C: 39ns/295ns
- Test Condition: 480V, 100A, 1.5Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: PLUS247™-3
