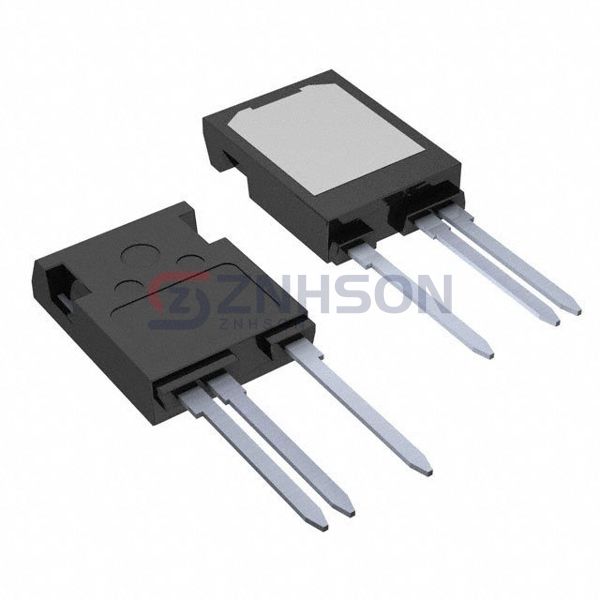

IXTX6N200P3HV
IXYS
IXYS
MOSFET N-CH 2000V 6A TO247PLUSHV
$69.96
Available to order
Reference Price (USD)
1+
$51.25000
30+
$44.32000
120+
$41.55000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IXTX6N200P3HV from IXYS, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the IXTX6N200P3HV ensures reliable performance in demanding environments. Upgrade your circuit designs with IXYS's cutting-edge technology today.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 2000 V
- Current - Continuous Drain (Id) @ 25°C: 6A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 4Ohm @ 3A, 10V
- Vgs(th) (Max) @ Id: 5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 143 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3700 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 960W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247PLUS-HV
- Package / Case: TO-247-3 Variant
