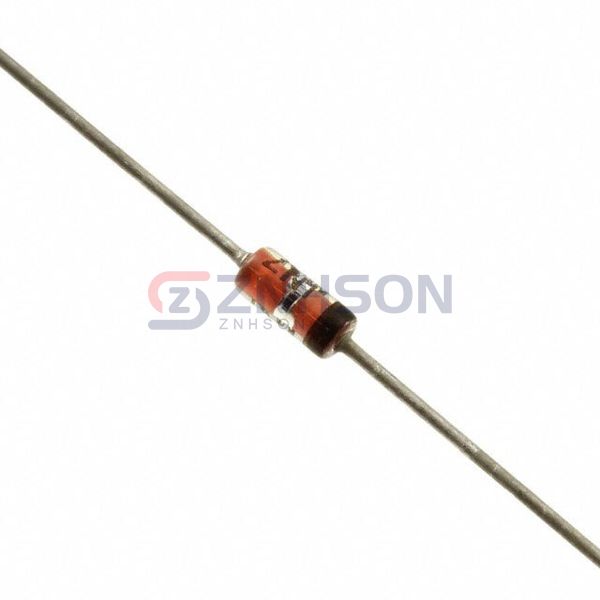

JAN1N5196
Microchip Technology
Microchip Technology
RECTIFIER
$16.50
Available to order
Reference Price (USD)
1+
$16.50000
500+
$16.335
1000+
$16.17
1500+
$16.005
2000+
$15.84
2500+
$15.675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JAN1N5196 by Microchip Technology is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the JAN1N5196 ensures long-term reliability even in harsh operating conditions. Trust Microchip Technology for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 225 V
- Current - Average Rectified (Io): 100mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1 µA @ 250 V
- Capacitance @ Vr, F: -
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
- Operating Temperature - Junction: -65°C ~ 175°C
