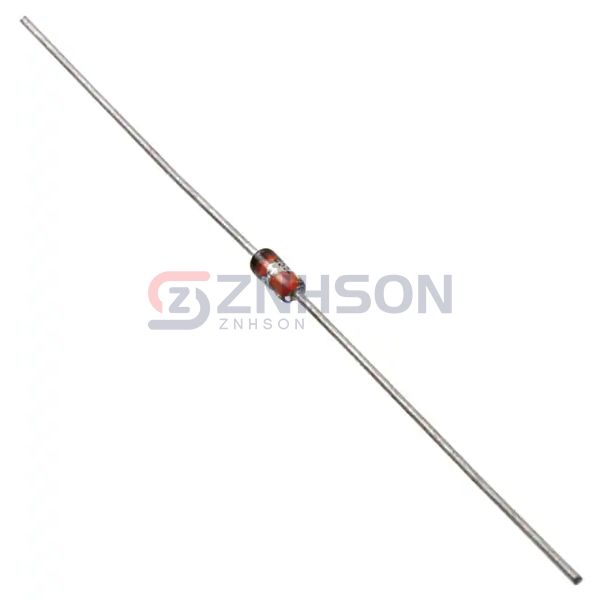

JAN1N5534C-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$13.74
Available to order
Reference Price (USD)
1+
$13.74000
500+
$13.6026
1000+
$13.4652
1500+
$13.3278
2000+
$13.1904
2500+
$13.053
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the JAN1N5534C-1/TR Zener diode by Microchip Technology, a standout in the Discrete Semiconductor Products lineup. This single Zener diode is engineered for precise voltage regulation, featuring a robust design that ensures long-term durability. With its low leakage current and high surge capability, the JAN1N5534C-1/TR is perfect for critical applications. Typical uses include voltage stabilization in consumer electronics, such as TVs and audio equipment, as well as in medical devices where consistent performance is paramount. The JAN1N5534C-1/TR is also a preferred choice for circuit protection in renewable energy systems, safeguarding inverters and charge controllers from voltage fluctuations.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 14 V
- Tolerance: ±2%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 12.6 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
