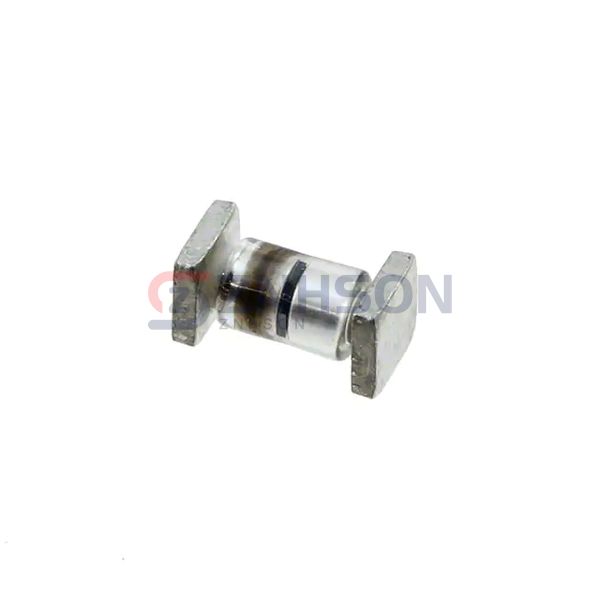

JAN1N6146US/TR
Microchip Technology
Microchip Technology
TVS DIODE 11.4VWM 22.05V SQ-MELF
$18.90
Available to order
Reference Price (USD)
1+
$18.90000
500+
$18.711
1000+
$18.522
1500+
$18.333
2000+
$18.144
2500+
$17.955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Protect your electronics with the JAN1N6146US/TR TVS diode by Microchip Technology. This diode offers exceptional clamping voltage and low leakage current, making it ideal for precision circuit protection. TVS diodes like the JAN1N6146US/TR are critical in applications such as power supplies, USB ports, and communication interfaces. They effectively absorb transient energy, preventing damage to connected devices. For example, the JAN1N6146US/TR can shield HDMI ports in consumer electronics from voltage surges. Trust Microchip Technology's expertise in delivering high-quality TVS diodes for your protection needs.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: -
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 11.4V
- Voltage - Breakdown (Min): 13.54V
- Voltage - Clamping (Max) @ Ipp: 22.05V
- Current - Peak Pulse (10/1000µs): 67.83A
- Power - Peak Pulse: 1500W (1.5kW)
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, C
- Supplier Device Package: C, SQ-MELF
