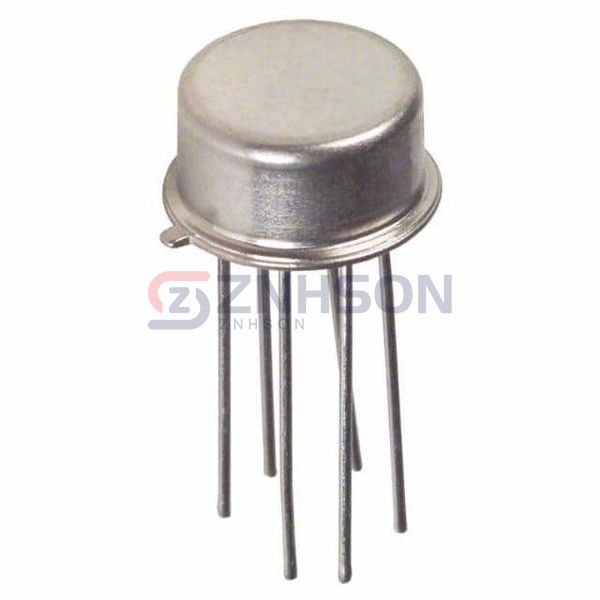

JANS2N5796
Microchip Technology
Microchip Technology
NPN TRANSISTOR
$415.88
Available to order
Reference Price (USD)
1+
$415.87500
500+
$411.71625
1000+
$407.5575
1500+
$403.39875
2000+
$399.24
2500+
$395.08125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the JANS2N5796 BJT Array Microchip Technology s flagship solution for Darlington pair configurations. This Discrete Semiconductor Product boasts high current gain (hFE) perfect for solenoid drivers, stepper motor controllers, and industrial PLCs. The JANS2N5796 is extensively used in robotics and power supply units due to its exceptional thermal management. Its lead-free compliance and RoHS certification make it an environmentally responsible choice for global markets.
Specifications
- Product Status: Active
- Transistor Type: 2 PNP (Dual)
- Current - Collector (Ic) (Max): 600mA
- Voltage - Collector Emitter Breakdown (Max): 60V
- Vce Saturation (Max) @ Ib, Ic: 1.6V @ 50mA, 500mA
- Current - Collector Cutoff (Max): 10µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 100 @ 150mA, 10V
- Power - Max: 600mW
- Frequency - Transition: -
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-78-6 Metal Can
- Supplier Device Package: TO-78-6
