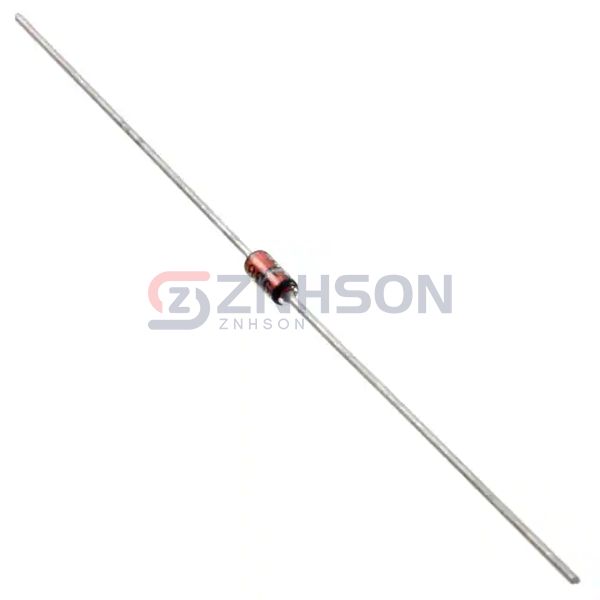

JANTX1N4470/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$8.48
Available to order
Reference Price (USD)
1+
$8.47500
500+
$8.39025
1000+
$8.3055
1500+
$8.22075
2000+
$8.136
2500+
$8.05125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N4470/TR from Microchip Technology is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the JANTX1N4470/TR is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 16 V
- Tolerance: ±5%
- Power - Max: 1.5 W
- Impedance (Max) (Zzt): 10 Ohms
- Current - Reverse Leakage @ Vr: 50 nA @ 12.8 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 1 A
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-204AL (DO-41)
