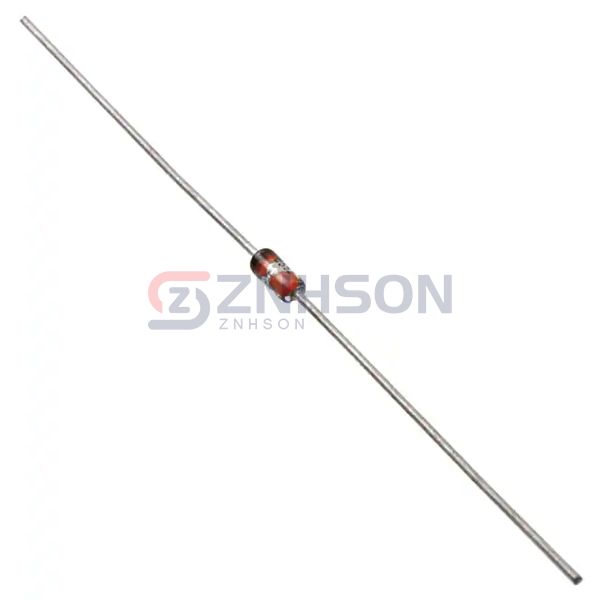

JANTX1N5520B-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$7.24
Available to order
Reference Price (USD)
1+
$7.24500
500+
$7.17255
1000+
$7.1001
1500+
$7.02765
2000+
$6.9552
2500+
$6.88275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the JANTX1N5520B-1/TR Zener diode from Microchip Technology, a standout in the Discrete Semiconductor Products category. This single Zener diode is designed for high-performance voltage regulation, with features like sharp breakdown voltage and minimal power dissipation. It is widely used in consumer electronics, such as gaming consoles and smart home devices, to ensure stable operation. The JANTX1N5520B-1/TR is also integral to automotive systems, where it safeguards electronic components from voltage fluctuations. Additionally, it finds applications in medical equipment, providing reliable voltage references for diagnostic devices and patient monitors.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 3.9 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 22 Ohms
- Current - Reverse Leakage @ Vr: 1 µA @ 1 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35
