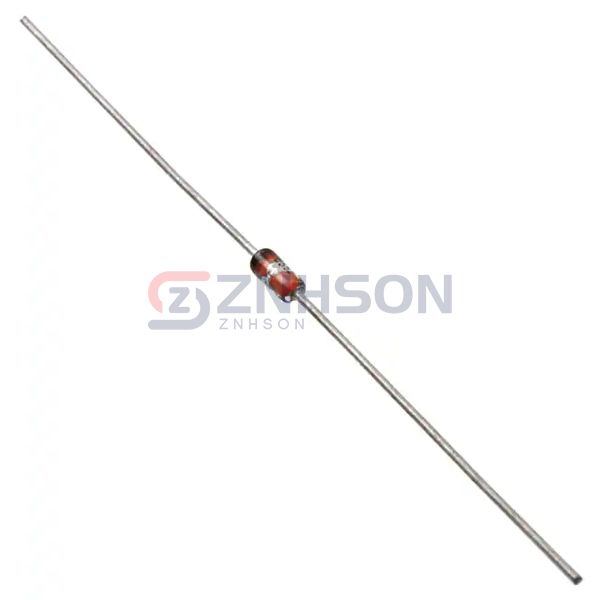

JANTX1N5534B-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$7.31
Available to order
Reference Price (USD)
1+
$7.30505
500+
$7.2319995
1000+
$7.158949
1500+
$7.0858985
2000+
$7.012848
2500+
$6.9397975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N5534B-1/TR by Microchip Technology is a high-quality single Zener diode, part of the Discrete Semiconductor Products family. Known for its precision and durability, this diode is perfect for voltage regulation in demanding environments. Key features include high power dissipation, low impedance, and excellent thermal stability. The JANTX1N5534B-1/TR is commonly used in industrial machinery, where it ensures consistent voltage levels for control systems and sensors. It is also a preferred choice for telecommunications equipment, maintaining signal clarity by preventing voltage drops. Moreover, it is employed in consumer electronics, such as wearables and tablets, to enhance device reliability.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 14 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 12.6 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
