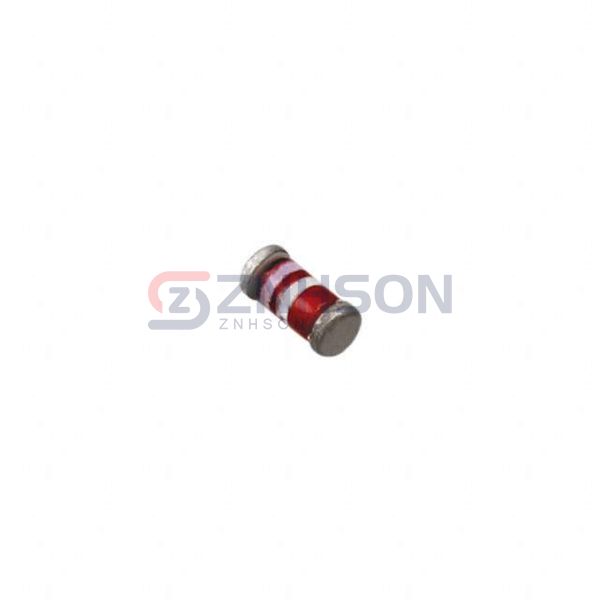

JANTX1N5534CUR-1
Microchip Technology
Microchip Technology
DIODE ZENER 14V 500MW DO213AA
$36.33
Available to order
Reference Price (USD)
100+
$29.89360
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N5534CUR-1 by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the JANTX1N5534CUR-1 is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 14 V
- Tolerance: ±2%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 12.6 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Surface Mount
- Package / Case: DO-213AA (Glass)
- Supplier Device Package: DO-213AA
Related Products
Vishay General Semiconductor - Diodes Division
PTV4.3B-M3/85A
Diodes Incorporated
1SMB5920B-13
Microchip Technology
JANTX1N3032BUR-1/TR
Diodes Incorporated
MMBZ5225BS-7-F
Microchip Technology
CDLL4737A/TR
Vishay General Semiconductor - Diodes Division
BZT52B56-E3-18
Diodes Incorporated
BZT52C20-13-F
Microchip Technology
1N3307RA
Microchip Technology

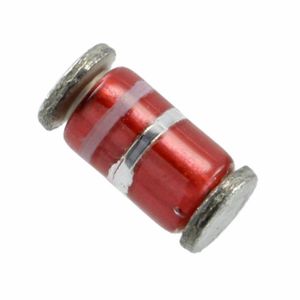

CDLL5231B
