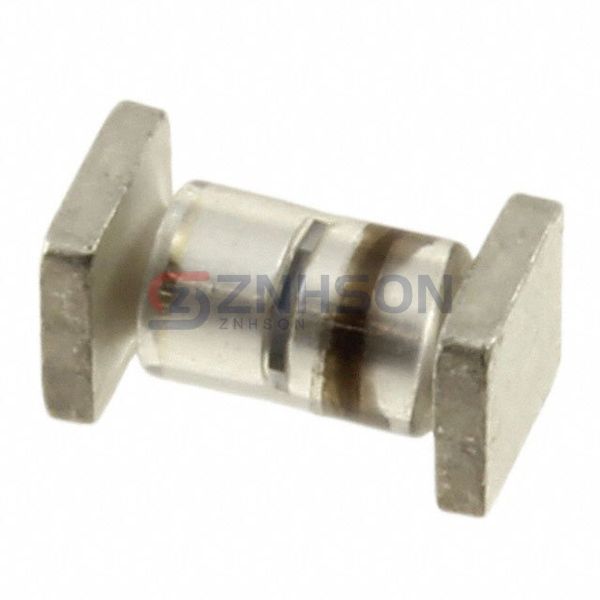

JANTX1N5804US
Microchip Technology
Microchip Technology
DIODE GEN PURP 100V 1A D5A
$8.08
Available to order
Reference Price (USD)
100+
$9.16300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with the JANTX1N5804US single rectifier diode from Microchip Technology. This Discrete Semiconductor Product is engineered for precision and efficiency, offering low forward voltage and high surge tolerance. Ideal for rectification in power adapters, welding equipment, and UPS systems, the JANTX1N5804US delivers consistent results under heavy loads. Its applications extend to aerospace and defense systems, where reliability cannot be compromised. Microchip Technology's JANTX1N5804US is the go-to choice for engineers seeking robust and high-performing rectifier diodes.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 100 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, A
- Supplier Device Package: D-5A
- Operating Temperature - Junction: -65°C ~ 175°C
