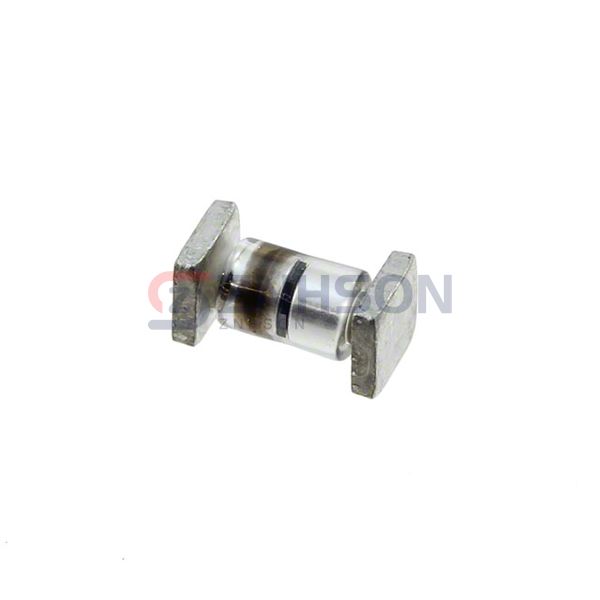

JANTX1N5806US/TR
Microchip Technology
Microchip Technology
UFR,FRR
$7.12
Available to order
Reference Price (USD)
1+
$7.12500
500+
$7.05375
1000+
$6.9825
1500+
$6.91125
2000+
$6.84
2500+
$6.76875
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N5806US/TR from Microchip Technology is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Microchip Technology's dedication to quality means the JANTX1N5806US/TR meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 975 mV @ 2.5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 25 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 150 V
- Capacitance @ Vr, F: 25pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, A
- Supplier Device Package: D-5A
- Operating Temperature - Junction: -65°C ~ 175°C
