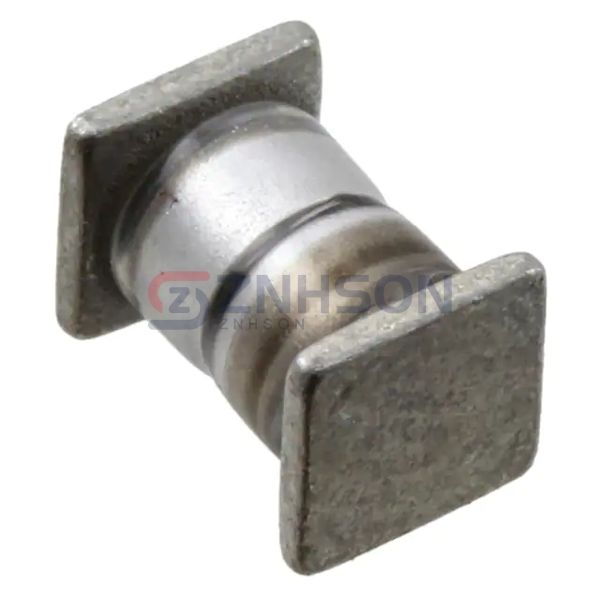

JANTX1N5809US/TR
Microchip Technology
Microchip Technology
RECTIFIER UFR,FRR
$8.44
Available to order
Reference Price (USD)
1+
$8.44500
500+
$8.36055
1000+
$8.2761
1500+
$8.19165
2000+
$8.1072
2500+
$8.02275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTX1N5809US/TR single rectifier diode by Microchip Technology is a standout in the Diodes - Rectifiers - Single classification. Known for its robust construction and high rectification efficiency, it is perfect for demanding applications like electric vehicle charging stations and industrial robotics. Its low power dissipation and high thermal stability ensure optimal performance in data storage systems and server farms. The JANTX1N5809US/TR is also used in consumer gadgets, such as smartphones and tablets, highlighting its adaptability. Microchip Technology's JANTX1N5809US/TR is the ultimate solution for high-performance rectification needs.
Specifications
- Product Status: Active
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 875 mV @ 4 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 30 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 100 V
- Capacitance @ Vr, F: 60pF @ 10V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, B
- Supplier Device Package: B, SQ-MELF
- Operating Temperature - Junction: -65°C ~ 175°C
