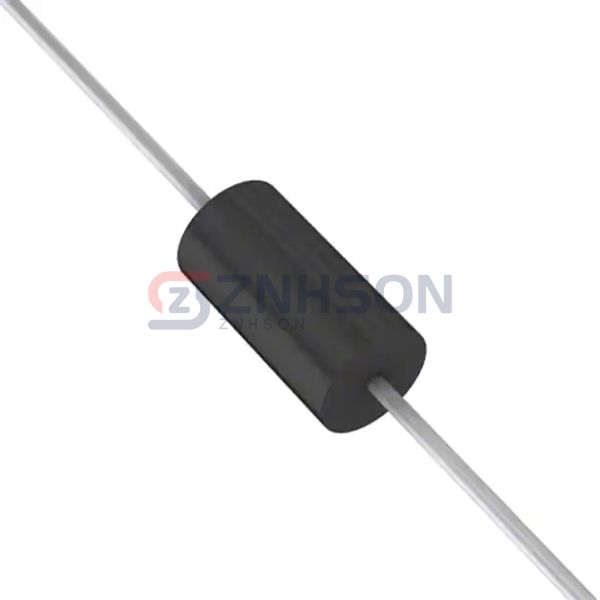

JANTXV1N3016D-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$35.44
Available to order
Reference Price (USD)
1+
$35.44500
500+
$35.09055
1000+
$34.7361
1500+
$34.38165
2000+
$34.0272
2500+
$33.67275
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The JANTXV1N3016D-1/TR by Microchip Technology is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the JANTXV1N3016D-1/TR is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 6.8 V
- Tolerance: ±1%
- Power - Max: 1 W
- Impedance (Max) (Zzt): 3.5 Ohms
- Current - Reverse Leakage @ Vr: 150 µA @ 5.2 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AL, DO-41, Axial
- Supplier Device Package: DO-41
