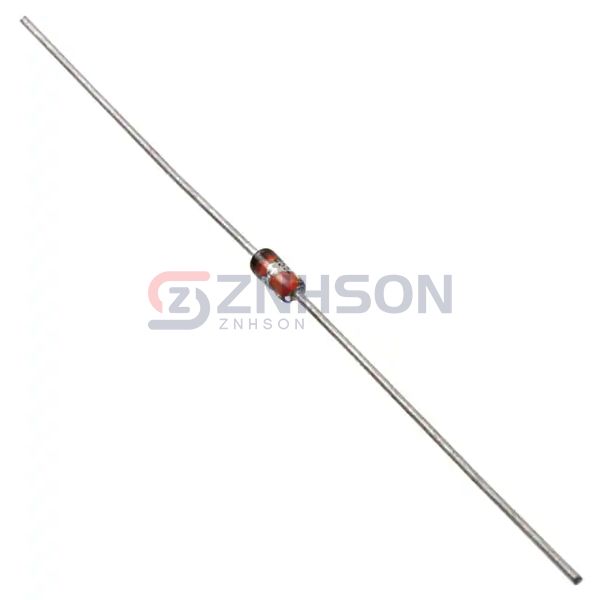

JANTXV1N5543C-1/TR
Microchip Technology
Microchip Technology
VOLTAGE REGULATOR
$22.62
Available to order
Reference Price (USD)
1+
$22.62000
500+
$22.3938
1000+
$22.1676
1500+
$21.9414
2000+
$21.7152
2500+
$21.489
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the JANTXV1N5543C-1/TR Zener diode by Microchip Technology, a standout in the Discrete Semiconductor Products lineup. This single Zener diode is engineered for precise voltage regulation, featuring a robust design that ensures long-term durability. With its low leakage current and high surge capability, the JANTXV1N5543C-1/TR is perfect for critical applications. Typical uses include voltage stabilization in consumer electronics, such as TVs and audio equipment, as well as in medical devices where consistent performance is paramount. The JANTXV1N5543C-1/TR is also a preferred choice for circuit protection in renewable energy systems, safeguarding inverters and charge controllers from voltage fluctuations.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 25 V
- Tolerance: ±2%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 100 Ohms
- Current - Reverse Leakage @ Vr: 10 nA @ 22.4 V
- Voltage - Forward (Vf) (Max) @ If: 1.1 V @ 200 mA
- Operating Temperature: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
Related Products
Microchip Technology
JAN1N5520BUR-1/TR
Diodes Incorporated
BZX84B15-7-F
Vishay General Semiconductor - Diodes Division
BZG05C22-HM3-08
Diotec Semiconductor
ZMD20
Taiwan Semiconductor Corporation
1PGSMA4741H
Vishay General Semiconductor - Diodes Division
MMSZ4691-G3-18
Central Semiconductor Corp
1N5232B TR PBFREE
Solid State Inc.

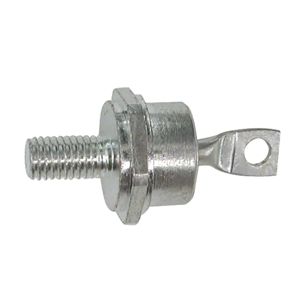

1N4555
Diotec Semiconductor

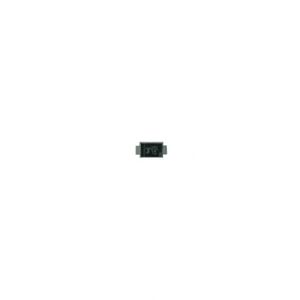

MMSZ5245B-AQ
