KA1-MV10405M2
Harwin Inc.
Harwin Inc.

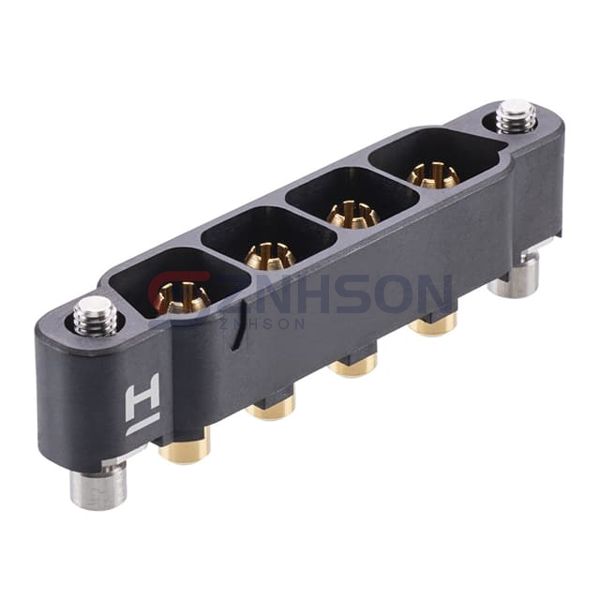

CONN HDR 8.5MM VERT PCB 4POS
$47.81
Available to order
Reference Price (USD)
1+
$47.81000
500+
$47.3319
1000+
$46.8538
1500+
$46.3757
2000+
$45.8976
2500+
$45.4195
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the KA1-MV10405M2 rectangular connector header from Harwin Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Harwin Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin, Power
- Pitch - Mating: 0.335" (8.50mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Threaded
- Contact Length - Mating: -
- Contact Length - Post: 0.177" (4.50mm)
- Overall Contact Length: -
- Insulation Height: 0.374" (9.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Beryllium Copper
- Insulation Material: Polyphenylene Sulfide (PPS)
- Features: Mating Flange, Mounting Flange
- Operating Temperature: -65°C ~ 150°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 60A per Contact
- Voltage Rating: -
