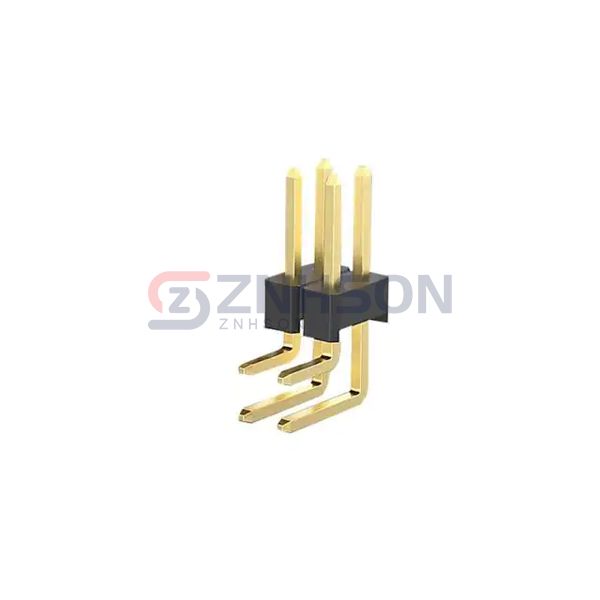

KWAF-WSD-04251-02-XXX
KinnexA
KinnexA
PIN HEADER DOUBLE ROW 4 PIN
$0.25
Available to order
Reference Price (USD)
1+
$0.25000
500+
$0.2475
1000+
$0.245
1500+
$0.2425
2000+
$0.24
2500+
$0.2375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The KWAF-WSD-04251-02-XXX by KinnexA is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the KWAF-WSD-04251-02-XXX supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. KinnexA ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.106" (2.70mm)
- Contact Length - Post: 0.165" (4.20mm)
- Overall Contact Length: -
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyester
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Hirose Electric Co Ltd
DF3-4P-2DS(01)
Amphenol ICC (FCI)
69192-202HLF
Sullins Connector Solutions
GRPB261VWTC-RC

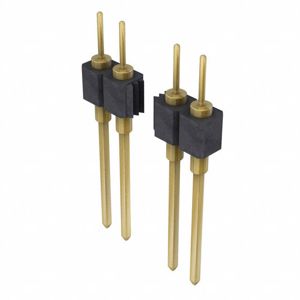

Preci-Dip
353-10-147-00-001101

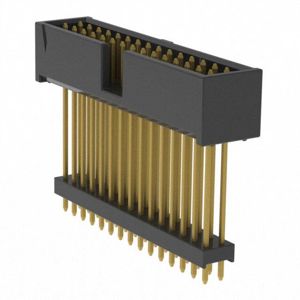

Samtec Inc.
ZSS-115-06-G-D-1040

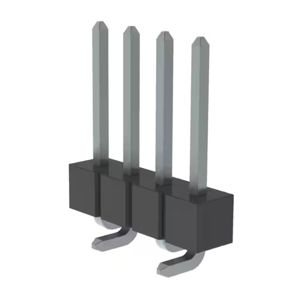

Samtec Inc.
TSM-104-02-TM-SV

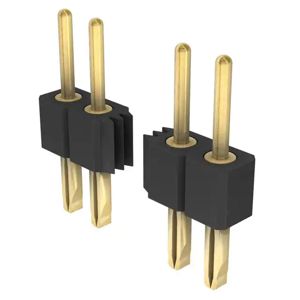

Preci-Dip
800-10-005-66-001101

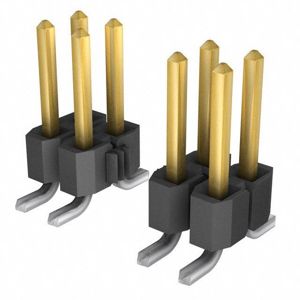

Samtec Inc.
TSM-122-01-L-DV-P-TR

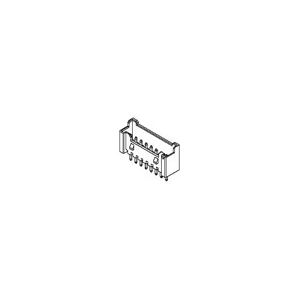

Molex
