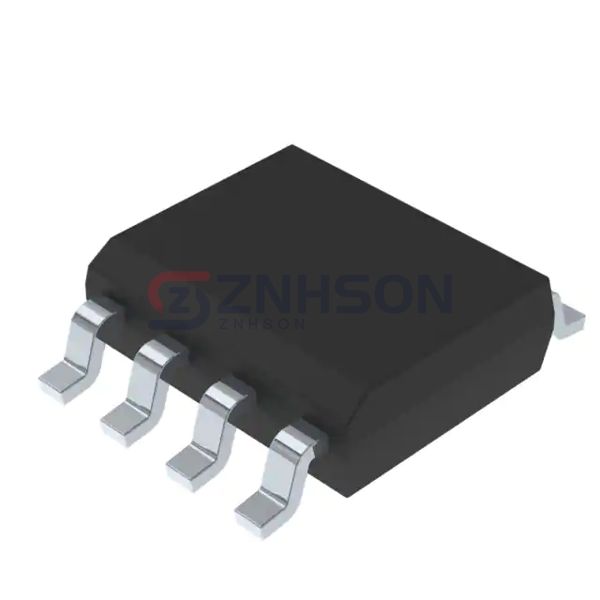

L6569AD013TR
STMicroelectronics
STMicroelectronics
IC GATE DRVR HALF-BRIDGE 8SO
$0.00
Available to order
Reference Price (USD)
2,500+
$0.84546
5,000+
$0.81801
12,500+
$0.79056
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with STMicroelectronics's L6569AD013TR, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The L6569AD013TR demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Obsolete
- Driven Configuration: Half-Bridge
- Channel Type: Synchronous
- Number of Drivers: 2
- Gate Type: IGBT, N-Channel MOSFET
- Voltage - Supply: 10V ~ 16.6V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 170mA, 270mA
- Input Type: RC Input Circuit
- High Side Voltage - Max (Bootstrap): 600 V
- Rise / Fall Time (Typ): -
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
