L9856-TR
STMicroelectronics
STMicroelectronics

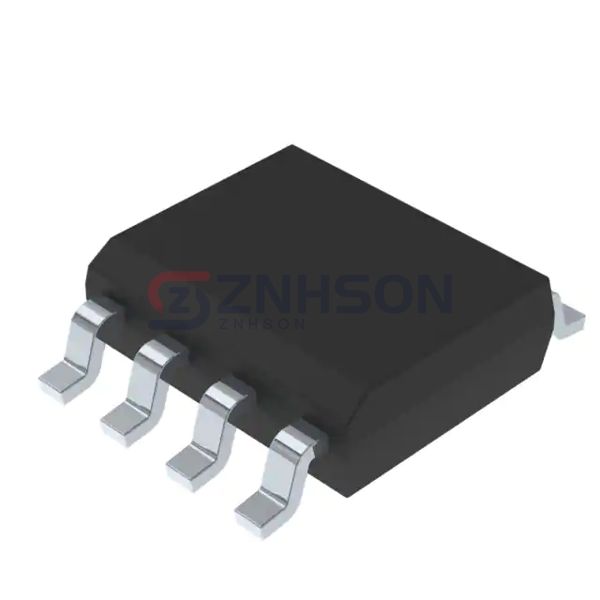

IC GATE DRVR HIGH-SIDE 8SO
$0.00
Available to order
Reference Price (USD)
2,500+
$0.67500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
STMicroelectronics presents the L9856-TR as a revolutionary PMIC - Gate Driver IC engineered for next-gen wide bandgap semiconductors. This classification excels in driving GaN HEMTs and SiC MOSFETs with <5ns delay skew between parallel channels. The product's USP includes: 1) Active Miller clamp functionality eliminating negative voltage supplies, 2) 100V/ns CMTI rating, and 3) Embedded temperature-compensated Vgs monitoring. Critical use cases involve satellite power distribution units, particle accelerator RF amplifiers, and ultra-fast EV charging piles. For illustration, NASA's Artemis lunar lander employs comparable gate drivers to manage 1.2kV SiC modules at 500kHz switching rates in vacuum environments.
Specifications
- Product Status: Active
- Driven Configuration: High-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 4.4V ~ 6.5V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 500mA, 500mA
- Input Type: Inverting
- High Side Voltage - Max (Bootstrap): 150 V
- Rise / Fall Time (Typ): 100ns, 100ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SOIC
