LD39020DTPU15R
STMicroelectronics
STMicroelectronics
IC REG LINEAR 1.5V 200MA 4DFN
$0.53
Available to order
Reference Price (USD)
10,000+
$0.12150
30,000+
$0.11520
50,000+
$0.11250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the LD39020DTPU15R linear voltage regulator IC by STMicroelectronics, a standout product in our PMIC - Voltage Regulators - Linear category. This IC provides precise voltage regulation with ultra-low noise output, making it perfect for analog and RF circuits. The device features excellent PSRR (Power Supply Rejection Ratio) performance and comes in various package options to suit different design requirements. Linear regulators such as this LD39020DTPU15R model are extensively used in consumer electronics (smartphones, tablets), IoT devices, and aerospace applications where consistent voltage without switching noise is essential. Its robust design ensures reliable operation in harsh environments with wide temperature ranges.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.35V @ 200mA
- Current - Output: 200mA
- Current - Quiescent (Iq): 40 µA
- Current - Supply (Max): -
- PSRR: 80dB ~ 55dB (1kHz ~ 100kHz)
- Control Features: Enable
- Protection Features: Over Current, Over Temperature, Soft Start
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 4-XDFN Exposed Pad
- Supplier Device Package: 4-DFN (1x1)
Related Products
Texas Instruments
TPS7A1108PDRVT
STMicroelectronics
LDLN025J2925R
Nisshinbo Micro Devices Inc.
RP122K181D-TR
Microchip Technology
MCP1792T-5002H/CB
Texas Instruments
TPS7A6050QKVUQ1
Texas Instruments
TLV70734DQNT
Nisshinbo Micro Devices Inc.
RP132S501D-E2-FE
ABLIC Inc.
S-1165B43MC-N7CTFG

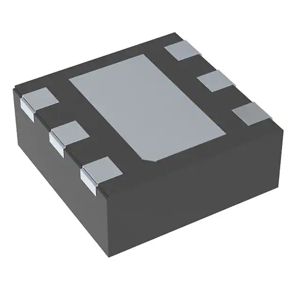

Texas Instruments
