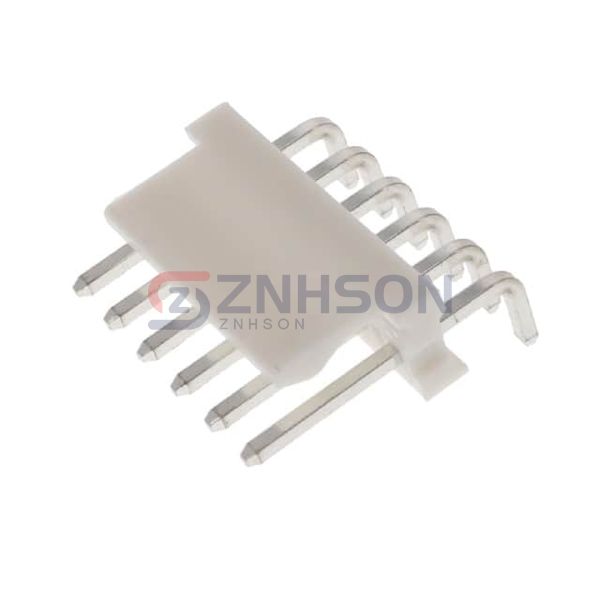

LHD-06-TRA
Adam Tech
Adam Tech
CONN HEADER R/A 6POS 3.96MM
$0.46
Available to order
Reference Price (USD)
1+
$0.46000
500+
$0.4554
1000+
$0.4508
1500+
$0.4462
2000+
$0.4416
2500+
$0.437
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the LHD-06-TRA rectangular connector header from Adam Tech. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the LHD-06-TRA is perfect for automotive, industrial, and consumer electronics. Adam Tech ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.449" (11.40mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.300" (7.62mm)
- Contact Shape: Square
- Contact Finish - Mating: -
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: White
- Current Rating (Amps): 7A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1445050-4
TE Connectivity AMP Connectors
3-1761608-5
3M
929834-07-05
Samtec Inc.
TSM-102-03-T-SH
3M
929834-02-23
Harwin Inc.
M80-8820422
Sullins Connector Solutions
GRPB251VWTC-RC

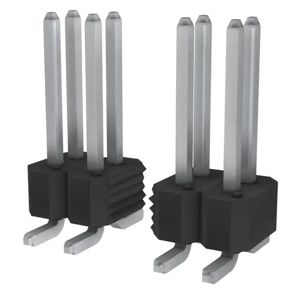

Amphenol ICC (FCI)
95278-402-28LF

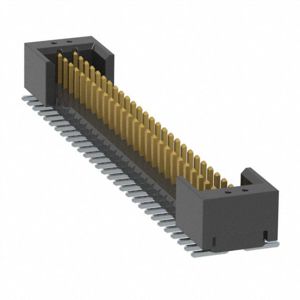

Samtec Inc.
