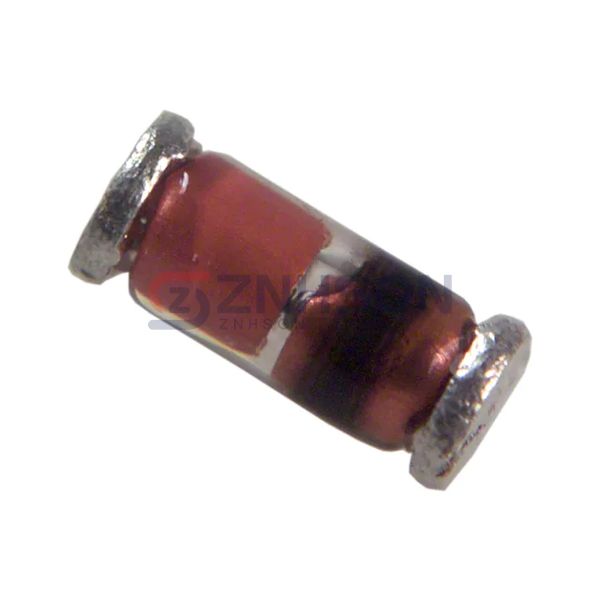

LLSD101A-13
Diodes Incorporated
Diodes Incorporated
DIODE SCHOTTKY 60V 15MA MINIMELF
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LLSD101A-13 from Diodes Incorporated is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. Diodes Incorporated's dedication to quality means the LLSD101A-13 meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io): 15mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 15 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 1 ns
- Current - Reverse Leakage @ Vr: 200 nA @ 50 V
- Capacitance @ Vr, F: 2pF @ 0V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-213AC, MINI-MELF, SOD-80
- Supplier Device Package: Mini MELF
- Operating Temperature - Junction: -55°C ~ 125°C
