LM2936MMX-3.3/NOPB
Texas Instruments
Texas Instruments
IC REG LINEAR 3.3V 50MA 8VSSOP
$1.20
Available to order
Reference Price (USD)
1+
$1.20000
500+
$1.188
1000+
$1.176
1500+
$1.164
2000+
$1.152
2500+
$1.14
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LM2936MMX-3.3/NOPB from Texas Instruments is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.4V @ 50mA
- Current - Output: 50mA
- Current - Quiescent (Iq): 15 µA
- Current - Supply (Max): 2.5 mA
- PSRR: 60dB (120Hz)
- Control Features: -
- Protection Features: Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-VSSOP
Related Products
Texas Instruments
TPS79718DCKR
Analog Devices Inc.
LT1963EFE-1.5#PBF
Nisshinbo Micro Devices Inc.
RN5RZ35AA-TR-FE
Diodes Incorporated
AP7315DQ-28W5-7
Diodes Incorporated
AS7812ADTR-G1
NXP USA Inc.
LD6836TD/18H,125
onsemi
MC78L08ACPRAG
ABLIC Inc.
S-814A26AUC-BCQT2G
Rohm Semiconductor

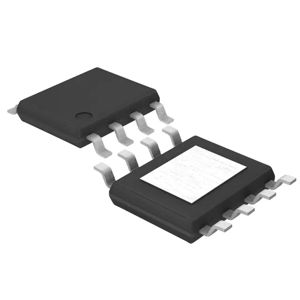

BD60HA5MEFJ-LBH2
