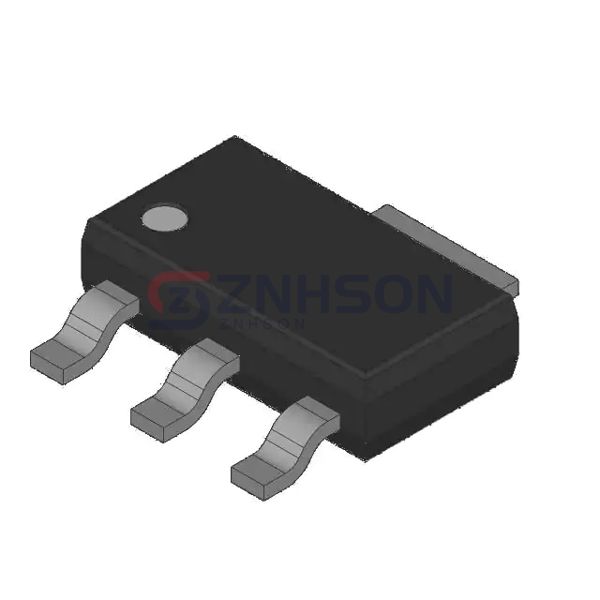

LM2936MP-3.3
National Semiconductor
National Semiconductor
IC REG LINEAR FIXED POS LDO 3.3V
$0.00
Available to order
Reference Price (USD)
1,000+
$1.10780
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LM2936MP-3.3 from National Semiconductor is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 40V
- Voltage - Output (Min/Fixed): 3.3V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.4V @ 50mA
- Current - Output: 50mA
- Current - Quiescent (Iq): 15 µA
- Current - Supply (Max): 2.5 mA
- PSRR: 60dB (120Hz)
- Control Features: -
- Protection Features: Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-261-4, TO-261AA
- Supplier Device Package: SOT-223-4
Related Products
onsemi
MC78M08BDTRK
Microchip Technology
MIC29150-3.3BU TR
Microchip Technology
MIC5206-3.3BM5-TR
Microchip Technology
MCP1812AT-033/TT
Richtek USA Inc.
RT9169-13GV
Analog Devices Inc./Maxim Integrated

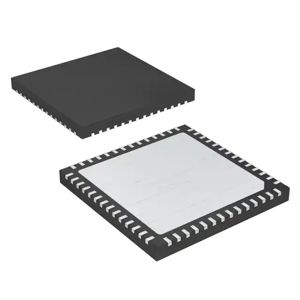

MAX5087BATN+T
Analog Devices Inc./Maxim Integrated
MAX1725EUK+TG002
STMicroelectronics

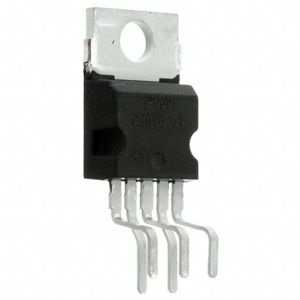

L4947
ABLIC Inc.

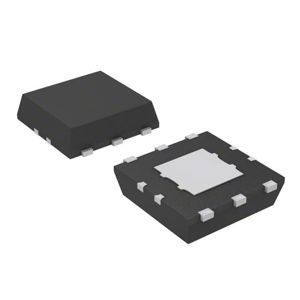

S-1170B22PD-OTHTFG
