LM5060Q1MMX/NOPB
Texas Instruments
Texas Instruments

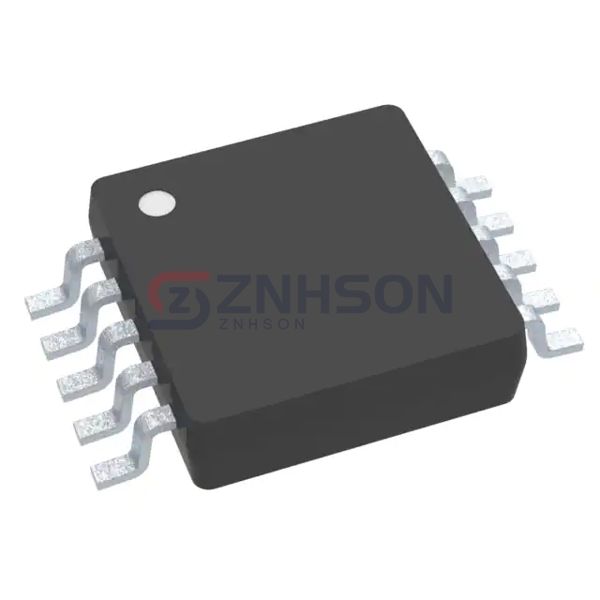

IC GATE DRVR HIGH-SIDE 10VSSOP
$2.90
Available to order
Reference Price (USD)
3,500+
$1.33110
7,000+
$1.28180
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's LM5060Q1MMX/NOPB establishes new standards for automotive PMIC - Gate Driver ICs with ASIL-D functional safety certification. This IC classification incorporates: 1) Redundant fault detection circuits, 2) On-chip LDO for auxiliary power, and 3) ISO 26262-compliant failure modes. Automotive applications range from 48V mild-hybrid BSG systems to steer-by-wire and brake-by-wire architectures. Benchmark tests show the LM5060Q1MMX/NOPB reducing ECU wake-up time by 200ms in Volkswagen's MEB platform, while preventing latch-up during load-dump transients up to 45V. The driver also enables <1 A standby current for always-on ADAS modules.
Specifications
- Product Status: Active
- Driven Configuration: High-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 5.5V ~ 65V
- Logic Voltage - VIL, VIH: 0.8V, 2V
- Current - Peak Output (Source, Sink): 24µA, 2.2mA
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-VSSOP
