LM5101CSD/NOPB
Texas Instruments
Texas Instruments

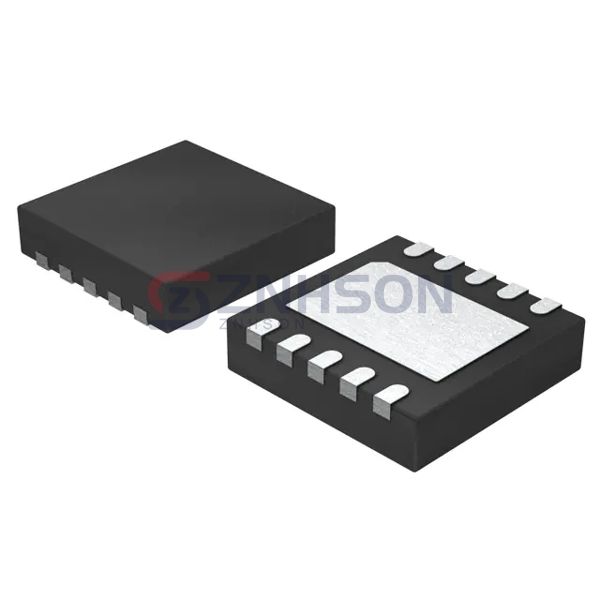

IC GATE DRVR HALF-BRIDGE 10WSON
$3.71
Available to order
Reference Price (USD)
1+
$3.71000
500+
$3.6729
1000+
$3.6358
1500+
$3.5987
2000+
$3.5616
2500+
$3.5245
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LM5101CSD/NOPB from Texas Instruments redefines compact power management as a space-optimized PMIC - Gate Driver IC. Measuring just 3x3mm QFN, this classification achieves 5kV reinforced isolation through innovative transformer coupling technology. Signature features are: 1) 50% lower quiescent current than industry average, 2) 3.3V/5V logic level translation, and 3) Lead-free/RoHS 3.0 compliance. Consumer electronics particularly benefit in wireless charging pads (Qi 1.3 standard), drone ESC modules, and VR headset power circuits. Real-world testing demonstrates the LM5101CSD/NOPB enabling 95W USB-PD adapters at 30W/in power density - a key enabler for Apple's MagSafe ecosystem.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 9V ~ 14V
- Logic Voltage - VIL, VIH: 2.3V, -
- Current - Peak Output (Source, Sink): 1A, 1A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 118 V
- Rise / Fall Time (Typ): 990ns, 715ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-WDFN Exposed Pad
- Supplier Device Package: 10-WSON (4x4)
