LM5106MMX/NOPB
Texas Instruments
Texas Instruments

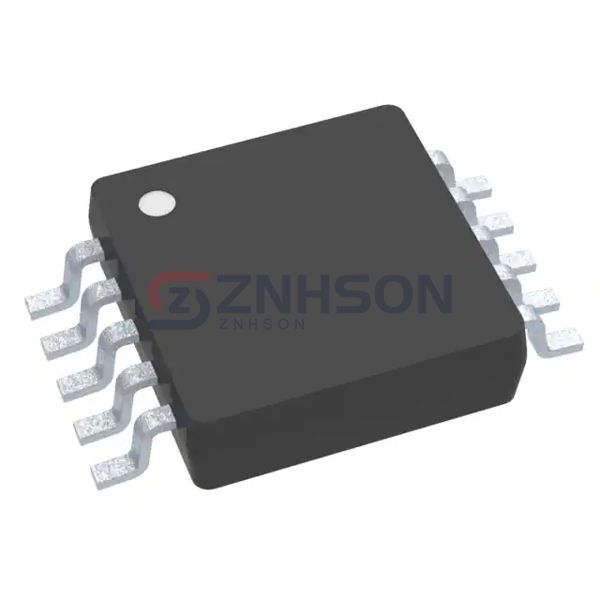

IC GATE DRVR HALF-BRIDGE 10VSSOP
$2.33
Available to order
Reference Price (USD)
1+
$2.33000
500+
$2.3067
1000+
$2.2834
1500+
$2.2601
2000+
$2.2368
2500+
$2.2135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Texas Instruments's LM5106MMX/NOPB, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The LM5106MMX/NOPB demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Synchronous
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 8V ~ 14V
- Logic Voltage - VIL, VIH: 0.8V, 2.2V
- Current - Peak Output (Source, Sink): 1.2A, 1.8A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 118 V
- Rise / Fall Time (Typ): 15ns, 10ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 10-VSSOP
