LM5114BMF/S7003094
Texas Instruments
Texas Instruments

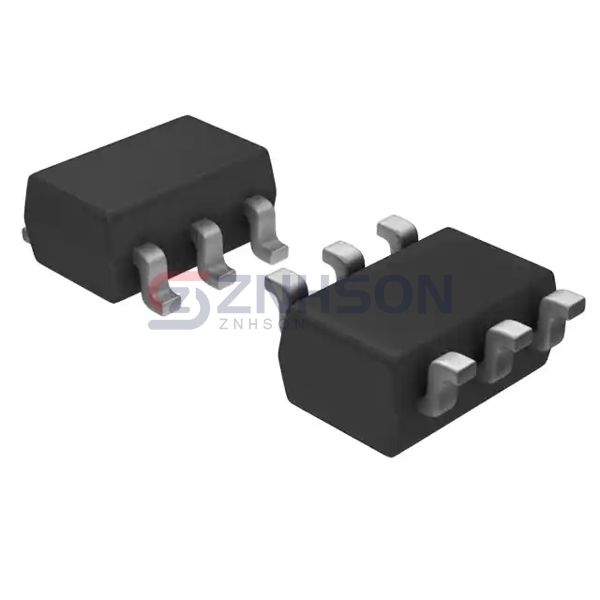

IC GATE DRVR LOW-SIDE SOT23-6
$1.84
Available to order
Reference Price (USD)
1+
$1.84000
500+
$1.8216
1000+
$1.8032
1500+
$1.7848
2000+
$1.7664
2500+
$1.748
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Texas Instruments's LM5114BMF/S7003094, a flagship PMIC - Gate Driver IC featuring dual-channel output with independent control. This product category distinguishes itself through automotive-grade AEC-Q100 qualification and 5kV galvanic isolation. The LM5114BMF/S7003094 demonstrates superior performance in: 1) reducing shoot-through current by 60% compared to conventional drivers, 2) supporting 2MHz switching frequency, and 3) offering DESAT protection for short-circuit prevention. Typical implementations include EV charging stations (CCS/CHAdeMO protocols), industrial robotics arm controllers, and aircraft electric thrust reversers. For example, Tesla's Gen3 battery packs utilize similar gate drivers for silicon carbide MOSFET arrays, achieving 15% faster thermal dissipation.
Specifications
- Product Status: Active
- Driven Configuration: Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT, N-Channel MOSFET
- Voltage - Supply: 4V ~ 12.6V
- Logic Voltage - VIL, VIH: 0.8V, 2.4V
- Current - Peak Output (Source, Sink): 1.3A, 7.6A
- Input Type: Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap): -
- Rise / Fall Time (Typ): 82ns, 12.5ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-23-6
- Supplier Device Package: SOT-23-6
