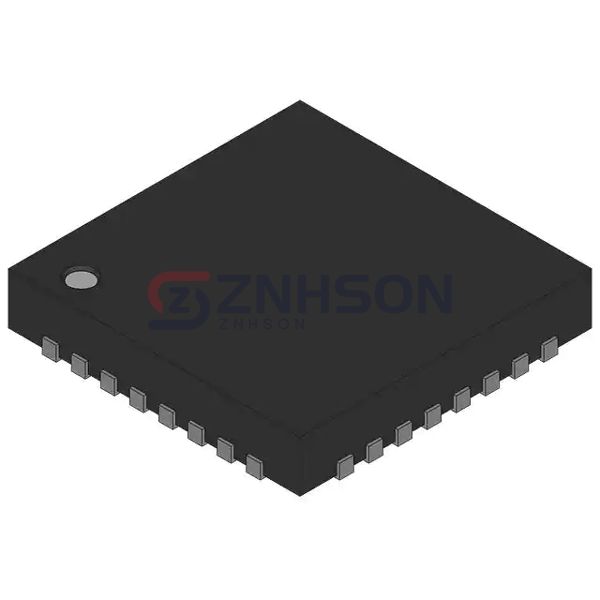

LMH7324SQ/NOPB
National Semiconductor
National Semiconductor
LMH7324 QUAD 700 PS HIGH SPEED C
$10.24
Available to order
Reference Price (USD)
1,000+
$8.35772
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
National Semiconductor's LMH7324SQ/NOPB represents the cutting edge of Linear - Comparator technology. This IC classification specializes in ultra-fast signal comparison with nanosecond response times, coupled with outstanding noise immunity. Designers benefit from features like open-drain outputs and wide operating temperature ranges (-40 C to 125 C). Primary use cases encompass threshold detection in security systems, pulse-width modulation for power electronics, and zero-crossing detection in audio equipment. A notable example is the LMH7324SQ/NOPB's implementation in solar inverters, where accurate DC voltage comparison ensures maximum power point tracking efficiency.
Specifications
- Product Status: Active
- Type: General Purpose
- Number of Elements: 4
- Output Type: Differential, LVDS, RSPECL
- Voltage - Supply, Single/Dual (±): 5V ~ 12V, ±2.5V ~ 6V
- Voltage - Input Offset (Max): 9.5mV @ 5V
- Current - Input Bias (Max): 5µA @ 5V
- Current - Output (Typ): -
- Current - Quiescent (Max): 7.5mA
- CMRR, PSRR (Typ): 80dB CMRR, 75dB PSRR
- Propagation Delay (Max): 0.74ns
- Hysteresis: 20.8mV
- Operating Temperature: -40°C ~ 125°C
- Package / Case: 32-WFQFN Exposed Pad
- Mounting Type: Surface Mount
- Supplier Device Package: 32-WQFN (5x5)
