LMS4684ITLX/NOPB
Texas Instruments
Texas Instruments
IC SWITCH DUAL SPDT 12USMD
$0.59
Available to order
Reference Price (USD)
3,000+
$0.89100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's LMS4684ITLX/NOPB redefines reliability in Analog Switch ICs with its 10-million operation endurance rating and <1ns skew between channels. This Interface solution incorporates adaptive power management that reduces consumption during idle periods by 90%. The LMS4684ITLX/NOPB is transforming signal routing in: satellite transponders, fusion reactor diagnostics, atomic clock synchronizers, and Mars rover instrumentation packages. Its radiation-tolerant design (100krad TID) and single-event upset immunity make it the go-to choice for space applications. Commercial implementations include premium automotive infotainment crosspoint switches and millimeter-wave test equipment.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 800mOhm
- Channel-to-Channel Matching (ΔRon): 1.11mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 60ns, 40ns
- -3db Bandwidth: -
- Charge Injection: 200pC
- Channel Capacitance (CS(off), CD(off)): -
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -72dB @ 100kHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount

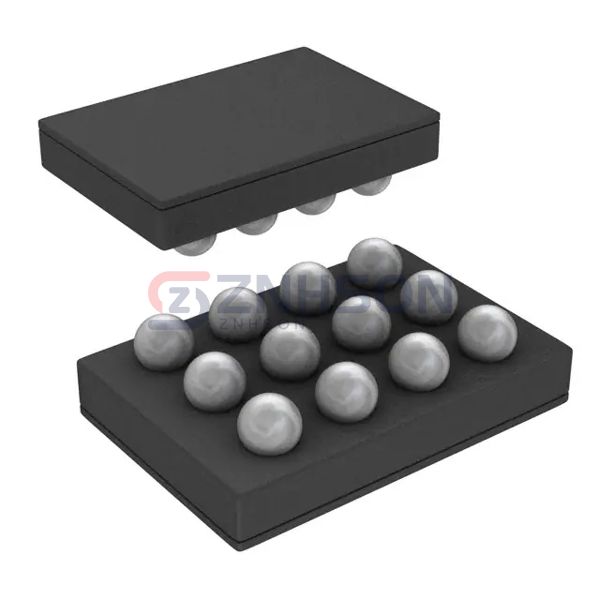

- Package / Case: 12-WFBGA
- Supplier Device Package: 12-uSMD (1.59x2.33)
