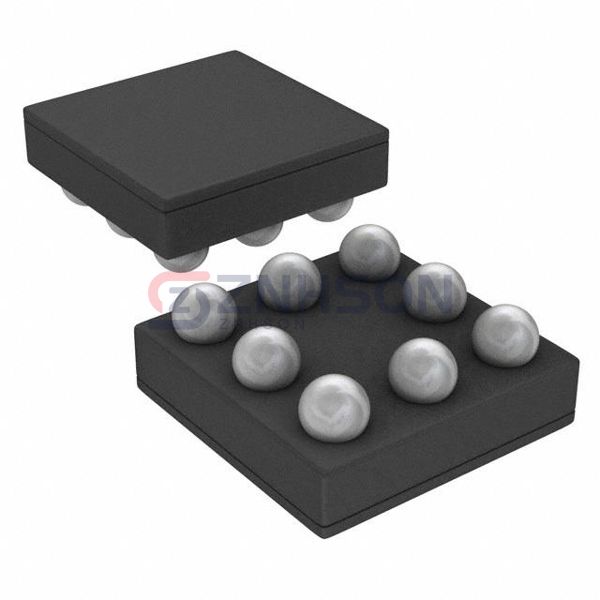

LMV7272TL/NOPB
Texas Instruments
Texas Instruments
IC COMPARATOR 1.8V DUAL MICROSMD
$2.48
Available to order
Reference Price (USD)
1+
$2.48000
500+
$2.4552
1000+
$2.4304
1500+
$2.4056
2000+
$2.3808
2500+
$2.356
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's LMV7272TL/NOPB represents the cutting edge of Linear - Comparator technology. This IC classification specializes in ultra-fast signal comparison with nanosecond response times, coupled with outstanding noise immunity. Designers benefit from features like open-drain outputs and wide operating temperature ranges (-40 C to 125 C). Primary use cases encompass threshold detection in security systems, pulse-width modulation for power electronics, and zero-crossing detection in audio equipment. A notable example is the LMV7272TL/NOPB's implementation in solar inverters, where accurate DC voltage comparison ensures maximum power point tracking efficiency.
Specifications
- Product Status: Active
- Type: General Purpose
- Number of Elements: 2
- Output Type: CMOS, Push-Pull, Rail-to-Rail
- Voltage - Supply, Single/Dual (±): 1.8V ~ 5.5V, ±0.9V ~ 2.75V
- Voltage - Input Offset (Max): 4mV @ 5V
- Current - Input Bias (Max): 0.01µA @ 5V
- Current - Output (Typ): -
- Current - Quiescent (Max): 14µA
- CMRR, PSRR (Typ): 78dB CMRR, 80dB PSRR
- Propagation Delay (Max): 2.1µs
- Hysteresis: -
- Operating Temperature: -40°C ~ 85°C
- Package / Case: 8-WFBGA, DSBGA
- Mounting Type: Surface Mount
- Supplier Device Package: 8-DSBGA
Related Products
Analog Devices Inc.
LT1721CGN#PBF
Analog Devices Inc./Maxim Integrated
MAX942EUA+T
Analog Devices Inc./Maxim Integrated
MAX516BCNG+
Texas Instruments
TLV1704AIPWR
Analog Devices Inc./Maxim Integrated
MAX978EEE+T
Analog Devices Inc.

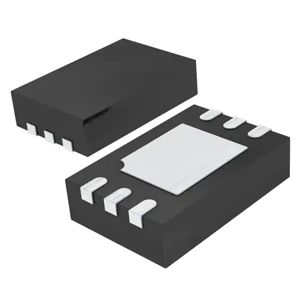

LT6700HDCB-2#TRPBF
STMicroelectronics

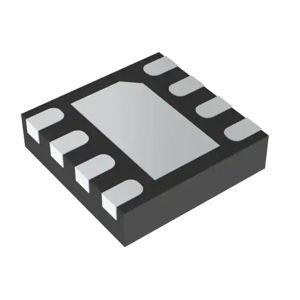

TS3011IYQ3T
Analog Devices Inc.

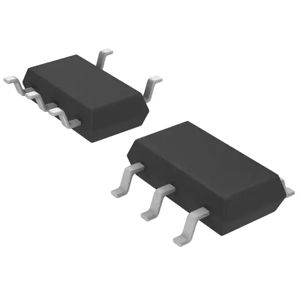

LT1716IS5#TRMPBF
