LP38691SDX-ADJ/NOPB
Texas Instruments
Texas Instruments
IC REG LIN POS ADJ 500MA 6WSON
$0.77
Available to order
Reference Price (USD)
1+
$0.77440
500+
$0.766656
1000+
$0.758912
1500+
$0.751168
2000+
$0.743424
2500+
$0.73568
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's LP38691SDX-ADJ/NOPB represents the cutting edge in linear voltage regulator technology within our Integrated Circuits (ICs) inventory. This PMIC component delivers fixed or adjustable output voltages with outstanding line and load regulation performance. The device incorporates advanced protection features including over-temperature and short-circuit protection, making it exceptionally reliable for critical applications. Linear voltage regulators like the LP38691SDX-ADJ/NOPB are fundamental in automotive electronics (for infotainment systems and ECUs), industrial control systems, and telecommunications infrastructure where voltage stability is paramount. Engineers particularly value these ICs for their simplicity of design and minimal external component requirements.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 10V
- Voltage - Output (Min/Fixed): 1.25V
- Voltage - Output (Max): 9V
- Voltage Dropout (Max): -
- Current - Output: 500mA
- Current - Quiescent (Iq): 55 µA
- Current - Supply (Max): 100 µA
- PSRR: 55dB (120Hz)
- Control Features: -
- Protection Features: Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: 6-WDFN Exposed Pad
- Supplier Device Package: 6-WSON (3x3)
Related Products
ABLIC Inc.
S-1313B10-A4T1U3
Texas Instruments
TPS77930DGKR
Texas Instruments
LP2992AILD-5.0/NOPB
Analog Devices Inc.
ADP170AUJZ-2.8-R7
Microchip Technology
MIC5265-2.7YD5-TR
Texas Instruments
LP3990TL-0.8/NOPB
onsemi
NCP115CMX110TBG
STMicroelectronics
STLQ020C18R

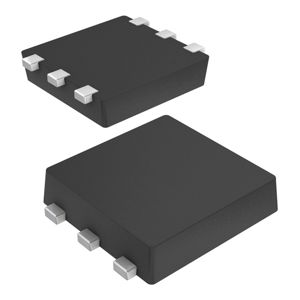

ABLIC Inc.
