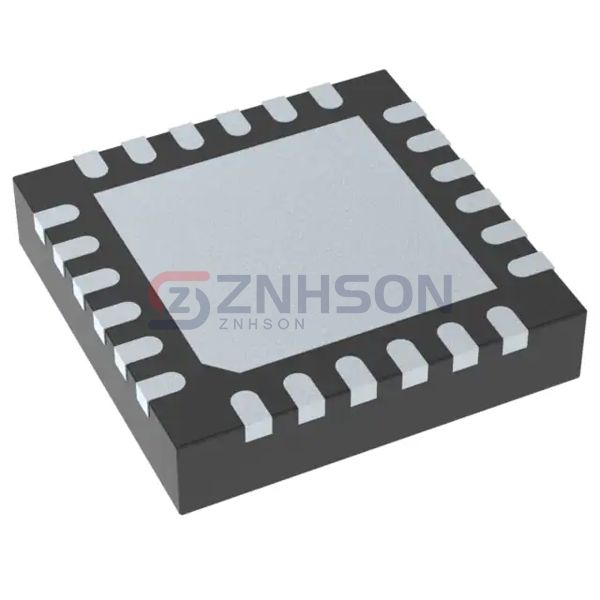

LP8556SQX-E09/NOPB
Texas Instruments
Texas Instruments
IC LED DRV RGLTR PWM 25MA 24WQFN
$1.40
Available to order
Reference Price (USD)
4,500+
$1.12860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LP8556SQX-E09/NOPB by Texas Instruments is a high-quality PMIC - LED Driver designed to meet the rigorous demands of modern lighting systems. Suitable for applications like museum lighting, theater lighting, and outdoor lighting, this IC offers precise control, durability, and energy efficiency. Its advanced diagnostics and protection features provide peace of mind, while its scalable design allows for easy adaptation to various lighting configurations. Choose the LP8556SQX-E09/NOPB for a reliable and future-proof LED driving solution.
Specifications
- Product Status: Active
- Type: DC DC Regulator
- Topology: Step-Up (Boost)
- Internal Switch(s): Yes
- Number of Outputs: 6
- Voltage - Supply (Min): 2.7V
- Voltage - Supply (Max): 20V
- Voltage - Output: 16V ~ 34.5V
- Current - Output / Channel: 25mA
- Frequency: 312kHz, 625kHz, 1250kHz
- Dimming: PWM
- Applications: Backlight
- Operating Temperature: -30°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 24-WFQFN Exposed Pad
- Supplier Device Package: 24-WQFN (4x4)
Related Products
Diodes Incorporated
BCR402UW6-7
Texas Instruments
TLC5923RHBR
Texas Instruments
TPS92692QPWPRQ1
onsemi
NCL30076AADR2G
Infineon Technologies
XDPL8219XUMA1
Texas Instruments
TLC6C5724QDAPRQ1
Texas Instruments
TLC5954RTQR
Microchip Technology
HV9910CLG-G

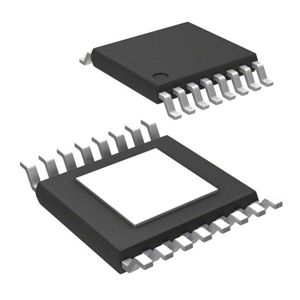

Texas Instruments
