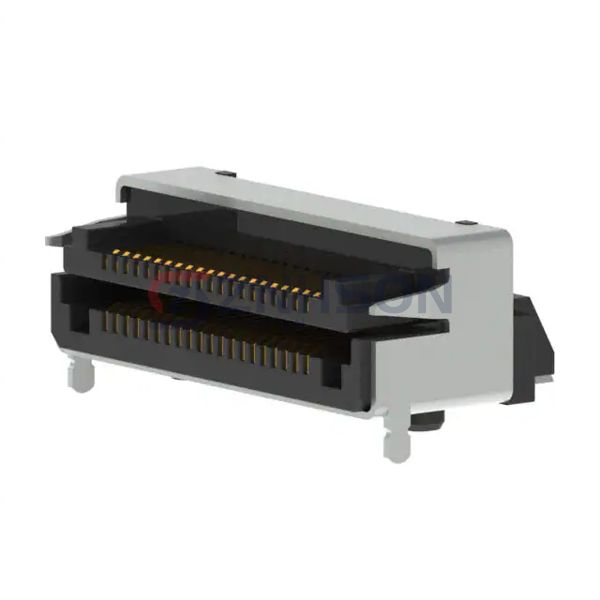

LSHM-120-01-L-DH-A-S-K-TR
Samtec Inc.
Samtec Inc.
CONN SELF-MATE 40P R/A SMD GOLD
$9.57
Available to order
Reference Price (USD)
500+
$4.79700
1,000+
$4.61250
1,500+
$4.52025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the LSHM-120-01-L-DH-A-S-K-TR rectangular connector from Samtec Inc. is a top choice for mezzanine board-to-board connections. Its edge-type design ensures reliable interconnections in high-density electronic assemblies. These connectors are built to perform in extreme environments, from industrial automation to aerospace applications. Typical uses include power supplies, motor drives, and satellite communication systems. By incorporating LSHM-120-01-L-DH-A-S-K-TR into your designs, you ensure robust connectivity and long-term reliability.
Specifications
- Product Status: Active
- Connector Type: Self Mating, Non-Gendered, Hermaphroditic
- Number of Positions: 40
- Pitch: 0.020" (0.50mm)
- Number of Rows: 2
- Mounting Type: Surface Mount, Right Angle
- Features: Board Guide, Pick and Place, Shielded
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Mated Stacking Heights: -
- Height Above Board: 0.202" (5.13mm)
Related Products
TE Connectivity AMP Connectors
6-1658043-3
Samtec Inc.
QTS-025-01-L-D-A
Hirose Electric Co Ltd
DF40C-24DS-0.4V(51)
Samtec Inc.

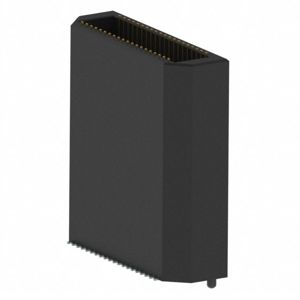

BTE-020-06-L-D-A
Molex

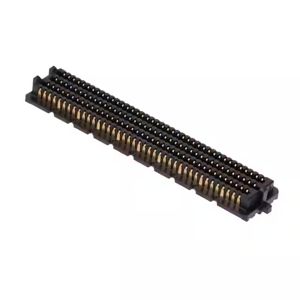

0459704185
Amphenol ICC (FCI)

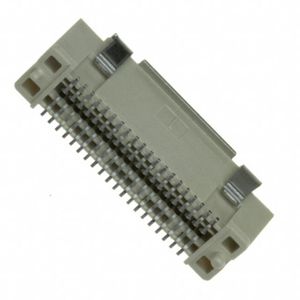

61083-043402LF
Amphenol ICC (Commercial Products)

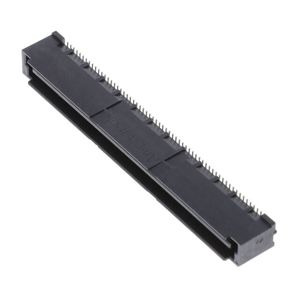

G832MB111205322HR
Samtec Inc.

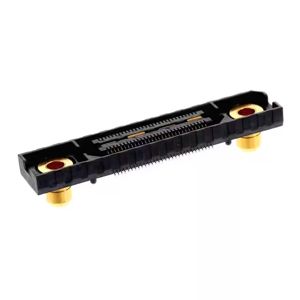

QSH-030-01-F-D-A-RT1
Molex

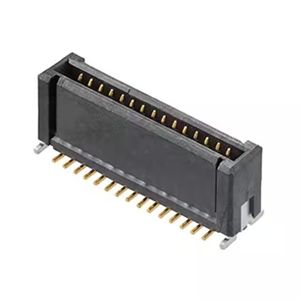

203955-0301
