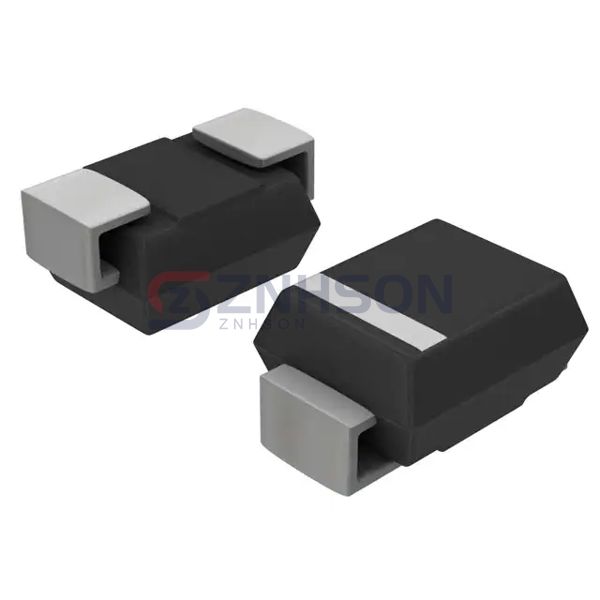

LSM545J/TR13
Microchip Technology
Microchip Technology
DIODE SCHOTTKY 45V 5A DO214AB
$1.11
Available to order
Reference Price (USD)
3,000+
$0.85400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LSM545J/TR13 from Microchip Technology is a high-performance single rectifier diode designed for efficient power conversion in various electronic applications. As part of the Discrete Semiconductor Products category, this diode ensures reliable and fast switching, making it ideal for power supplies, inverters, and converters. Its robust construction and low forward voltage drop minimize energy loss, enhancing overall system efficiency. Common applications include AC/DC conversion, voltage clamping, and reverse polarity protection in automotive, industrial, and consumer electronics. Trust Microchip Technology's LSM545J/TR13 for superior performance and durability in demanding environments.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io): 5A
- Voltage - Forward (Vf) (Max) @ If: 520 mV @ 5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 2 mA @ 45 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: DO-214AB, SMC
- Supplier Device Package: DO-214AB
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
Vishay General Semiconductor - Diodes Division
VS-8TQ100-M3
MDD
1N4007-T/B
Littelfuse Inc.
D6015LTP
Vishay General Semiconductor - Diodes Division
V4PAL45-M3/I
onsemi
MBRS1100T3G
Vishay General Semiconductor - Diodes Division
MBRB10100-M3/8W
Vishay General Semiconductor - Diodes Division
VS-16FR120
Rohm Semiconductor

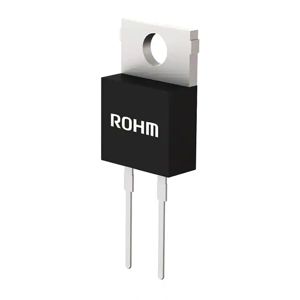

SCS302AHGC9
Micro Commercial Co

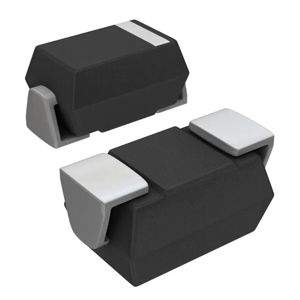

US1JE-TP
