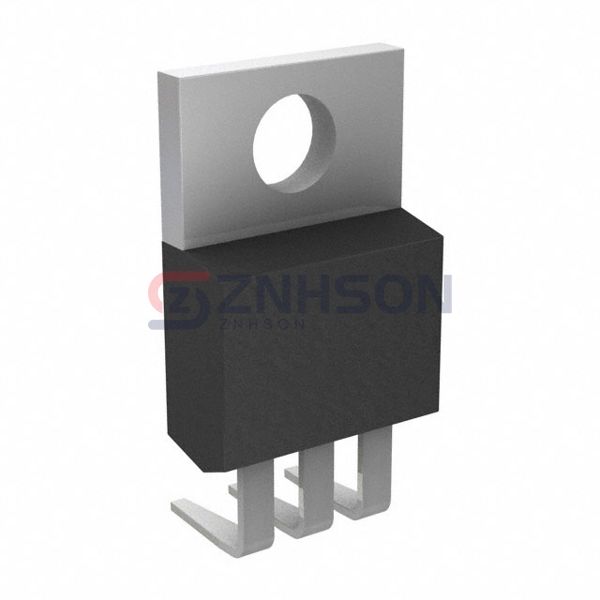

LT1086IT#36PBF
Analog Devices Inc.
Analog Devices Inc.
IC REG LIN POS ADJ 1.5A TO220-3
$5.00
Available to order
Reference Price (USD)
200+
$3.72400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The LT1086IT#36PBF from Analog Devices Inc. is a high-performance linear voltage regulator IC designed for precision power management applications. As part of our PMIC - Voltage Regulators - Linear collection, this component offers exceptional voltage regulation with low dropout characteristics. Featuring thermal shutdown protection and current limiting, this IC maintains stable output voltage even under varying load conditions. These linear regulators are ideal for noise-sensitive applications requiring clean power delivery, such as medical devices, audio equipment, and precision measurement instruments. Typical implementations include power conditioning for microcontroller systems, battery-powered devices, and as post-regulators for switching power supplies.
Specifications
- Product Status: Active
- Output Configuration: Positive
- Output Type: Adjustable
- Number of Regulators: 1
- Voltage - Input (Max): 25V
- Voltage - Output (Min/Fixed): 1.25V
- Voltage - Output (Max): 23.5V
- Voltage Dropout (Max): 1.5V @ 1.5A
- Current - Output: 1.5A
- Current - Quiescent (Iq): -
- Current - Supply (Max): -
- PSRR: 75dB (120Hz)
- Control Features: -
- Protection Features: Over Current, Over Temperature
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Formed Leads
- Supplier Device Package: TO-220-3 Flow 36
